Aleron C605+650LS

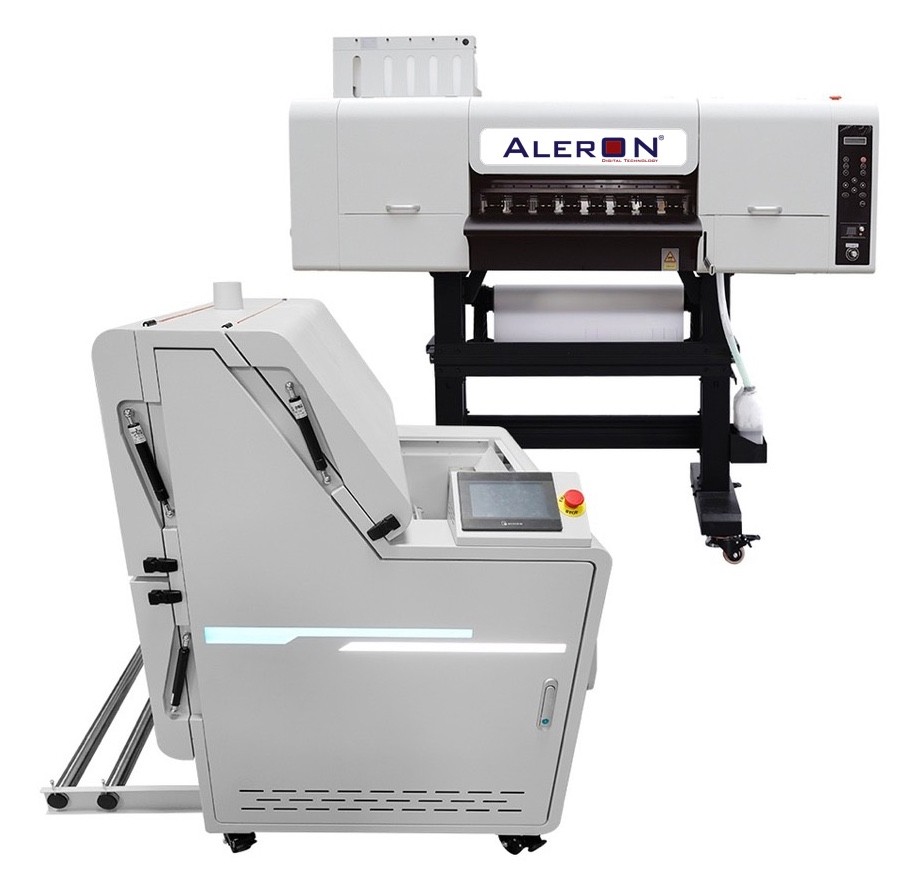

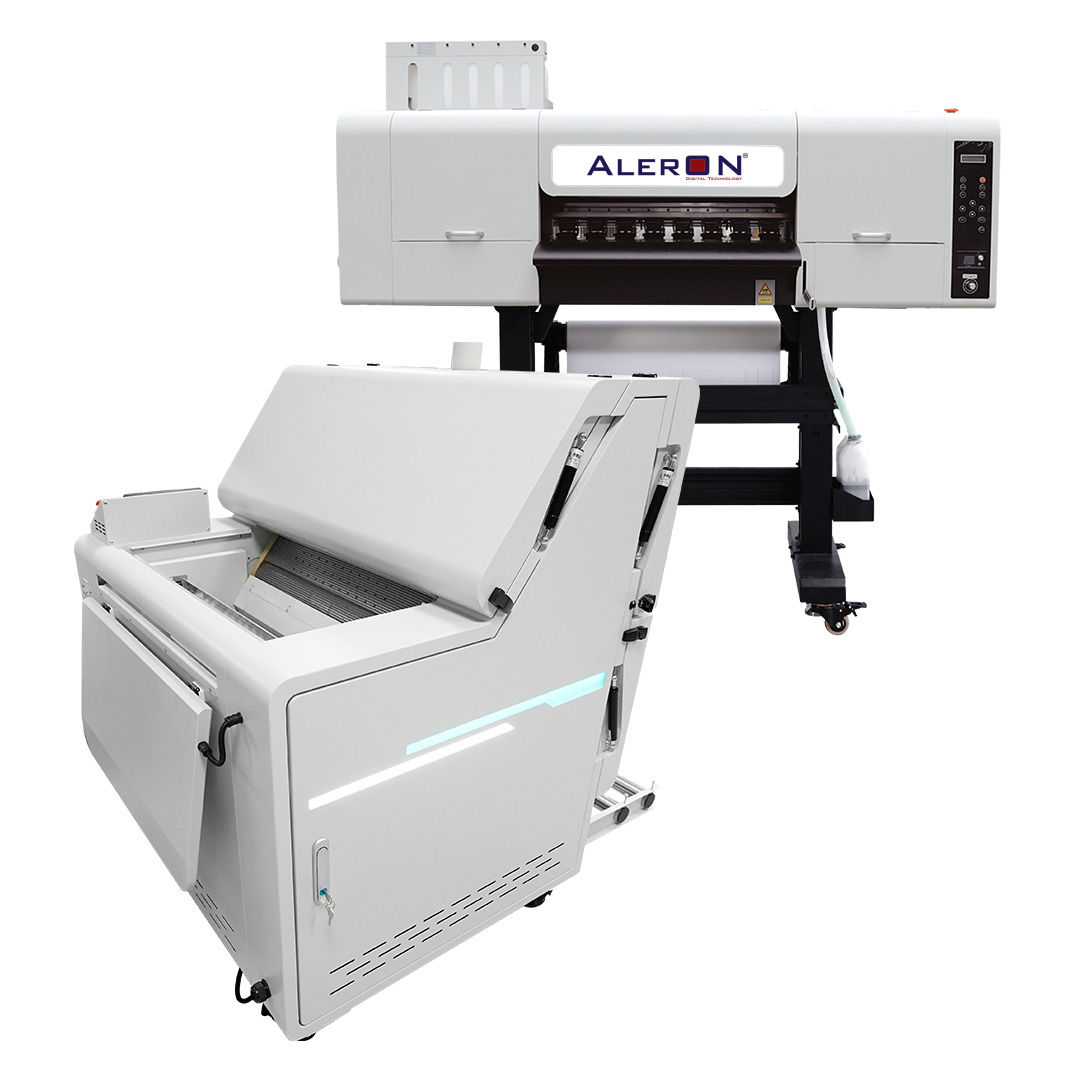

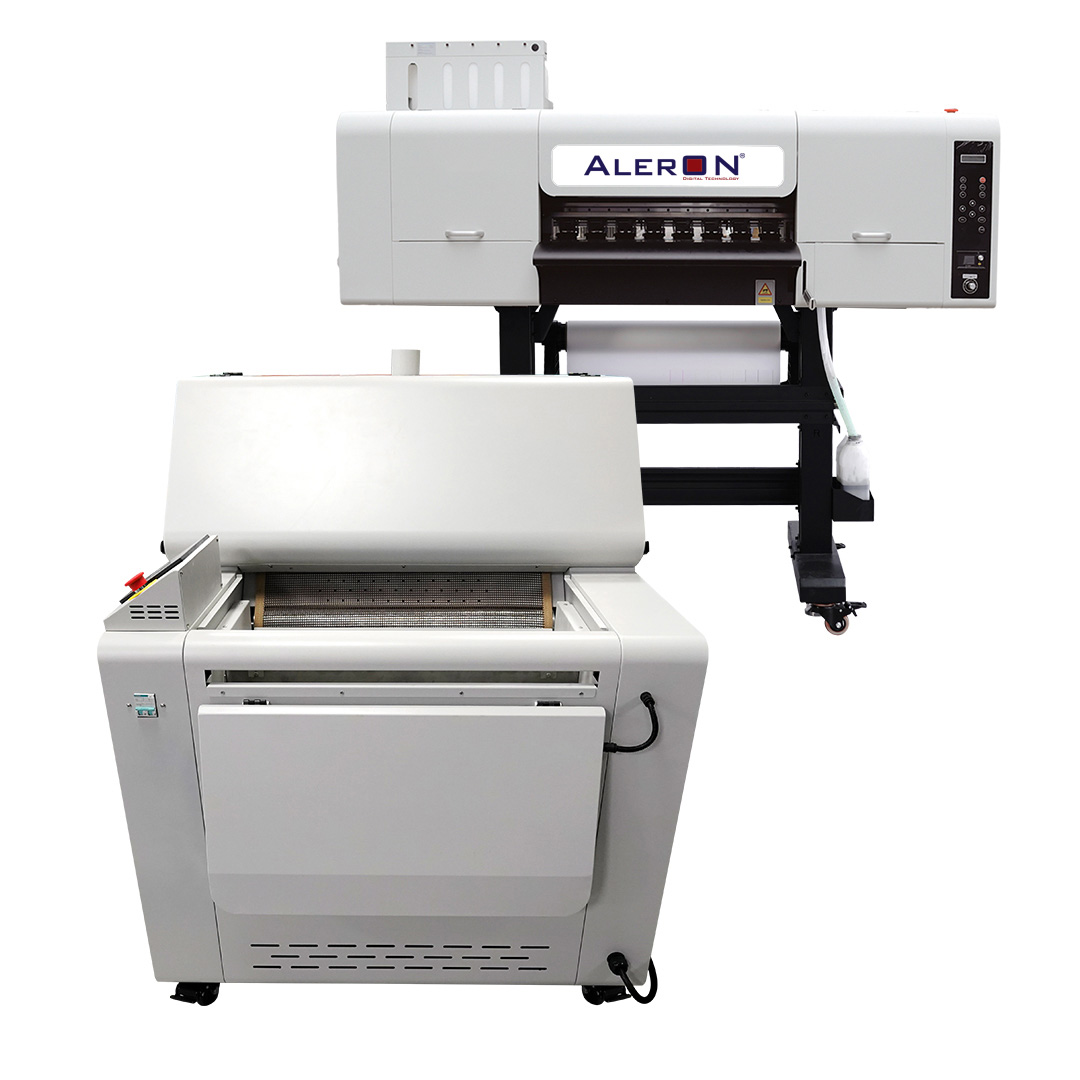

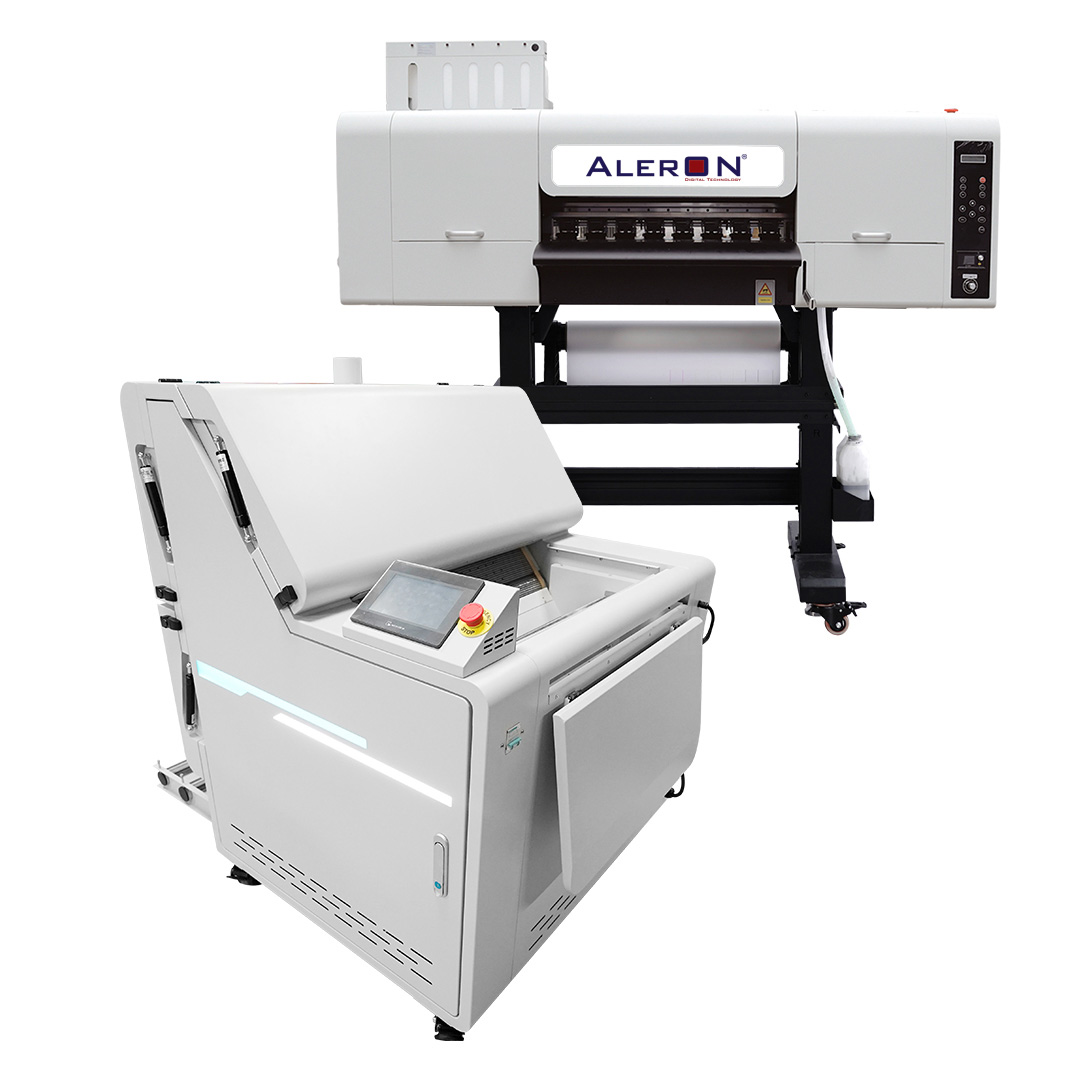

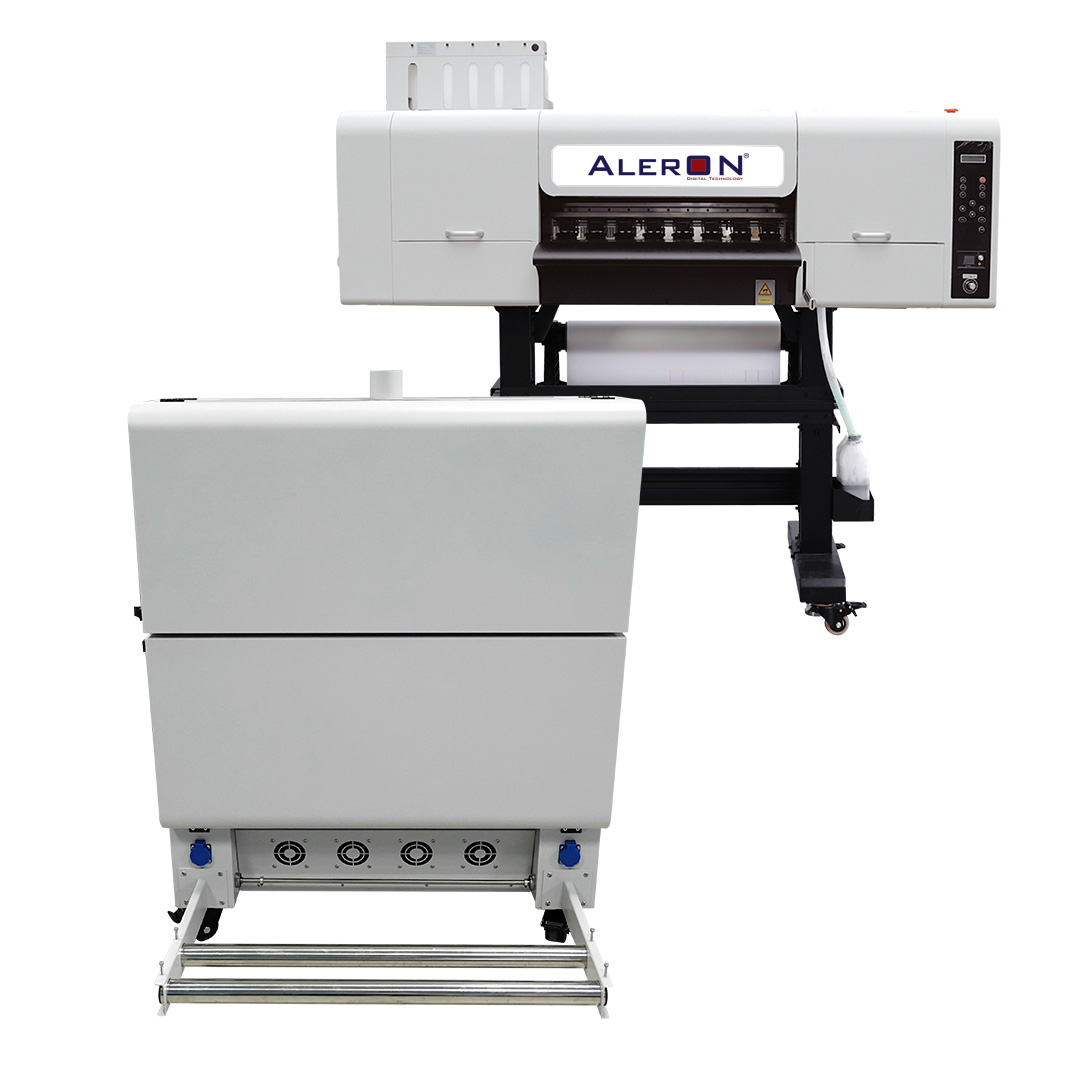

DTF Printing Machine 5 Head Epson I3200-A1
It can be applied to a variety of fabrics, such as nylon, chemical fiber, cotton, and more. It boasts high productivity and is suitable for efficient printing and bulk direct film orders.
With its Precisioncore technology, high speed, and high resolution, the I3200-A1 printhead is the latest and most efficient model for textile printing. It comes with superior nozzles that keep the printhead clean without interruption, automatic flash spraying, and humidification functions.
A cutting-edge printing machine developed with advanced technology, offering high precision, speed, and stability for the success of your business.
Silver Guide Rail
Main Platform
Main Platform
Anti-Collision Sensor
| Model | C602 |
|---|---|
| Print Head and Quantity | 5 PCS I3200-A1 |
| Print Speed | 6 Pass: 28 m/h |
| Print Width | 24" |
| Media Type | Pet Film |
| RIP Software | Standard Optional CAD Connectivity with Printfactory, Maintop, RIN, PhotoPrint |
| Temperature | 20-30°C |
| Humidity | 45-65% |
| Power | 350W |
| Machine Size | L1670*W815*H1600mm |
| Package Size | L2025*W840*H740mm |
| Net Weight | 150KG |
| Gross Weight | 210KG |
| Voltage | 110V/220V |
Technical Parameter of Powder Shaking Machine
| Model | C650LS |
|---|---|
| Applicable Media | Nylon, chemical fiber, cotton, leather, wetsuit, PVC, EVA, etc. |
| Retractable Media Width | 24 |
| Dust Addition Control | Agitating dust control, dusting control, direction and quantity control, automatic induction winding |
| Material Distribution Method | Mesh belt conveyor, conductive tape |
| Heating and Drying Function | Front Guide Plate Heating, Three-Stage Long Drying and Curing, 4-Row Cold Air Cooling Function |
| Rated Voltage | 220V/380V |
| Rated Current | 35/16A |
| Rated Power | 8KW |
| Energy Consumption | 4KW-8KW |
| Machine Dimensions | L1740*W1050*H1411mm |
