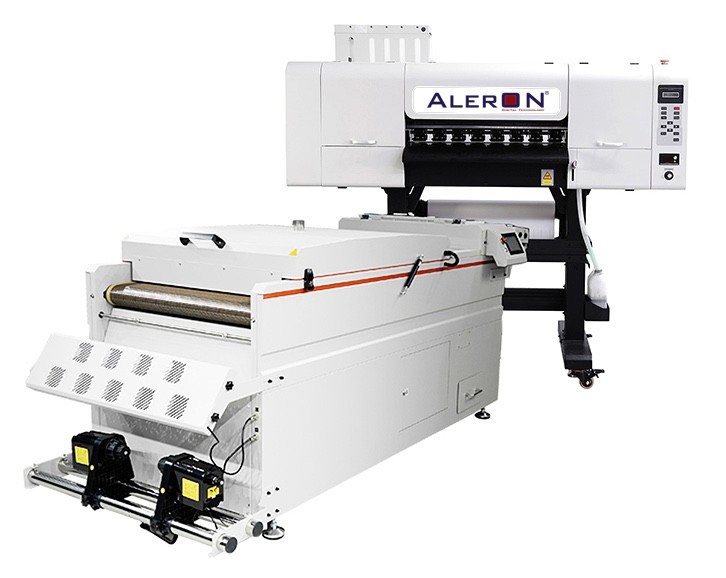

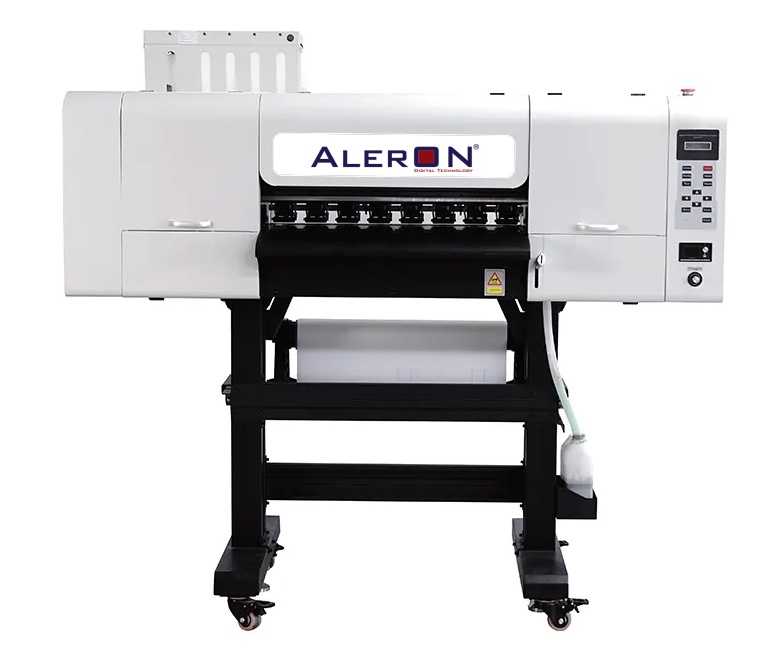

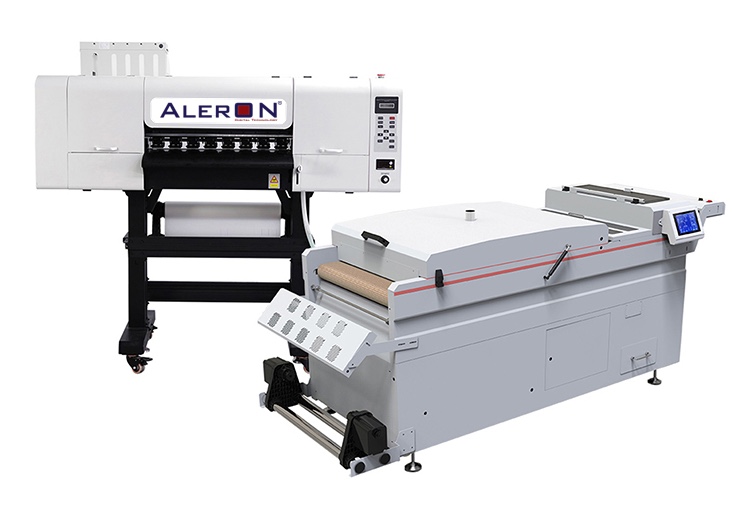

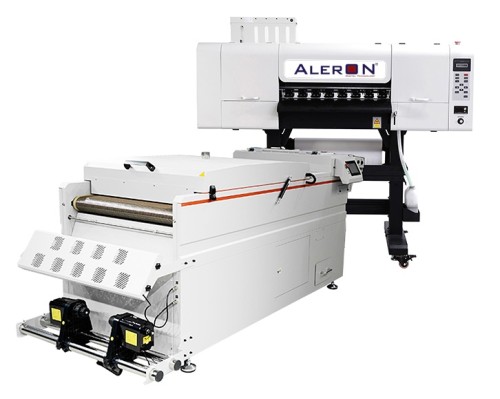

Aleron C604
DTF Printing Machine 4 Heads Epson I3200-A1
It can be applied to a variety of fabrics, such as nylon, chemical fiber, cotton, and more. It boasts high productivity and is suitable for efficient printing and bulk direct film orders.

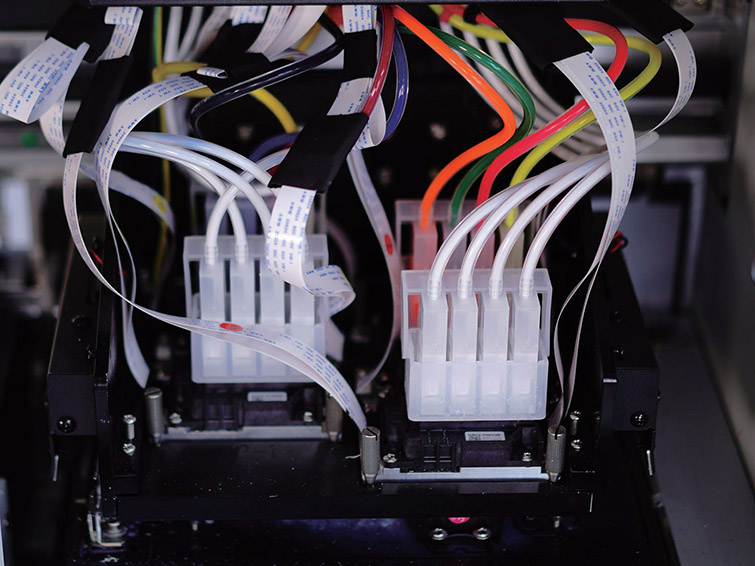

With its Precisioncore technology, high speed, and high resolution, the I3200-A1 printhead is the latest and most efficient model for textile printing. It comes with superior nozzles that keep the printhead clean without interruption, automatic flash spraying, and humidification functions.
A cutting-edge printing machine developed with advanced technology, offering high precision, speed, and stability for the success of your business.

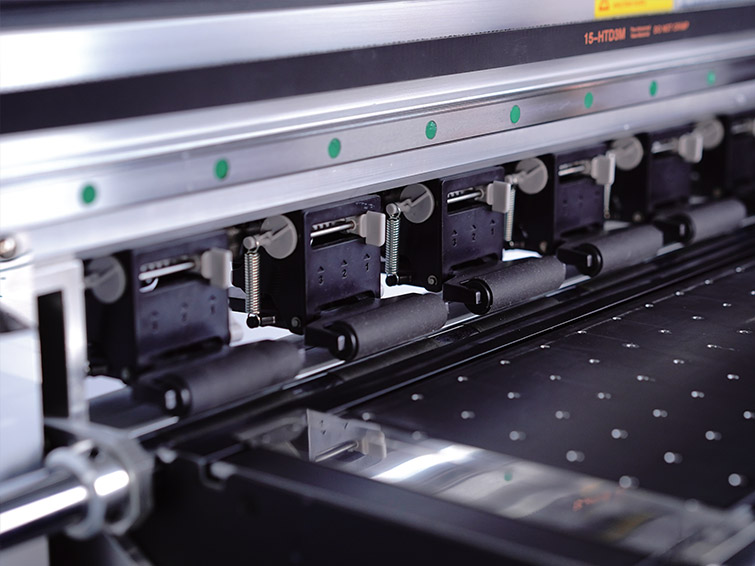

Imported Silent Rail

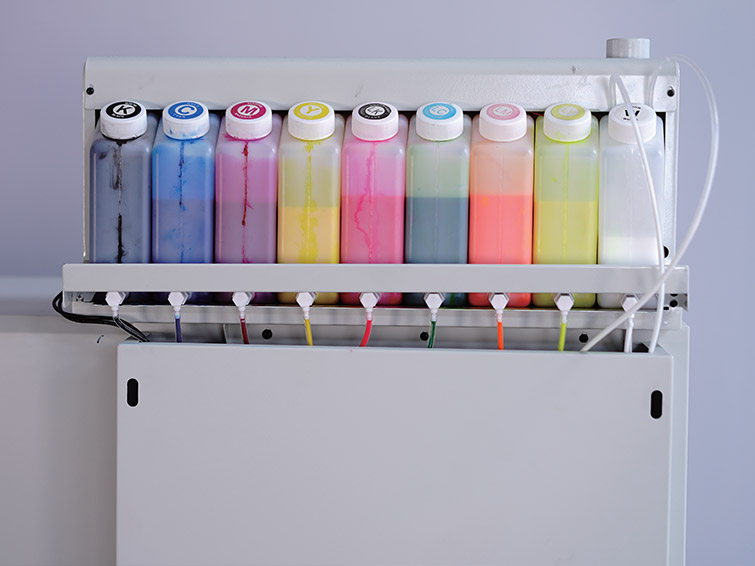

Large Cartridge

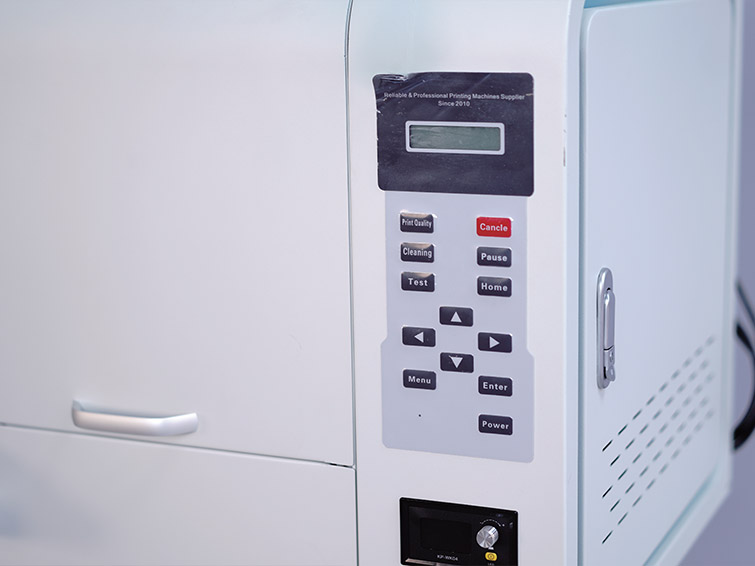

Easy Control Panel
Ink sac
| Model | C604 |
|---|---|
| Print Head and Quantity | 13200-A1 4 PCS |
| Print Color | CMYK+W (5 Colors) / 9 Colors CMYK+W+FY FM OR GR |
| Print Speed | 4 Pass: 24m/h 6 Pass: 16m/h |
| Print Width | 24" |
| Media Type | Pet Film |
| RIP Software | Standard with Printfactory, Maintop, RIIN, PhotoPrint, CADlink, Optional |
| Temperature/Humidity | Temperature: 20-35 Degrees Celsius Humidity: 45-65% |
| Power | 350W |
| Voltage | 110V / 220V |
| Operating System | Windows 11(32/64bit)/Windows 10(32/64bit) |
| Machine Size | W1670*W815*H1600mm |
| Package Size | W2025mm*W840mm*H740mm |
| Net Weight | 180KG |
| Gross Weight | 200 KG |
Technical Parameters of the Dust Shaker Machine
| Model | H6501 |
|---|---|
| Retractable Media Width | 24 inches |
| Fan Control | Dust control, dust accumulation control, direction and quantity control |
| Rewind Function | Automatic induction winding |
| Material Delivery Method | Mesh Belt Conveyor, Conductive Belt |
| Heating and Drying Function | Efficient and powerful drying and curing |
| Nominal Voltage | 110V/220V |
| Rated Current | 40A |
| Rated Power | 6.8 kW |
| Energy Consumption | 3 kW – 6.8 kW |
| Machine Dimensions | L2305 × W1092 × H1101 mm |
| Package Dimensions | L2400 × W1120 × H1140 mm |
| Net Weight | 210 kg |
| Gross Weight | 300 kg |
