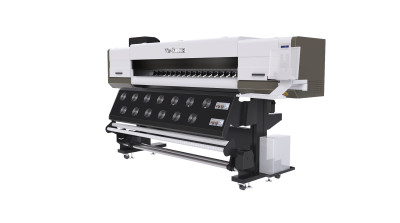

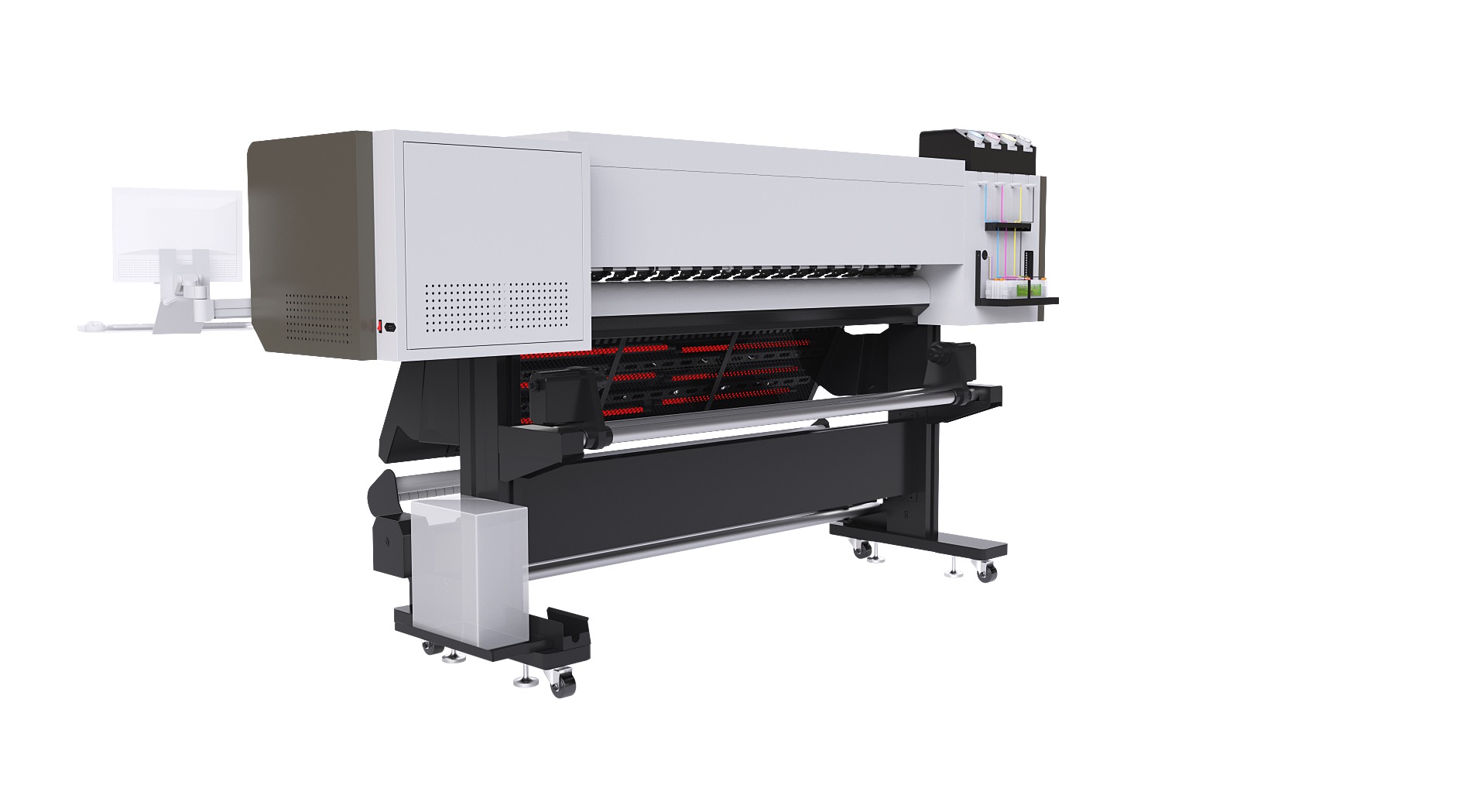

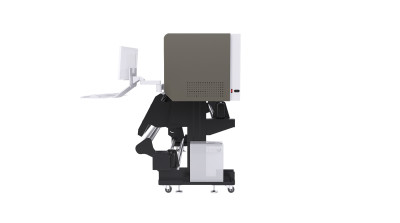

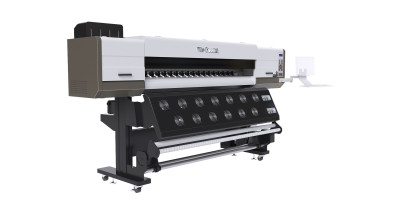

Ultra i3200 1904TP
Sublimation 1.8m Epson i3200 1904DS

Wit-Color Transfer Paper Printer Ultra i3200 1904TP Sublimation Ink EPSON

  • Print Width: 1.8 m
  • Print Head: Epson i3200
  • Print Head Quantity: 4/2pcs
  • Inks: Sublimation
  • RIP Software: PhotoPrint or Print Factory


Wit-Color NEW Design Sublimation Printer Ulltra i3200 1904

For High Resolution Sublimation Printing Use
1. Epson i3200 Print Head
2. Maximum Printing Width is 1.8m
3. High Quality! High Resolution Better Performance!


Heavy Duty Paper Feeding System with Inflatable Shaft

The printer is equipped with a sturdy paper feeding system with an inflatable shaft. This design provides a secure grip on paper rolls, reducing slippage and maintaining consistent tension. This ensures smooth, uninterrupted feeding of even the heaviest paper stocks, increasing productivity and minimizing downtime.


Carbon Fiber Drying System Increases Image Drying Efficiency

The inclusion of a carbon fiber drying system significantly increases image drying efficiency. Carbon fiber materials provide superior heat dissipation, allowing prints to dry quickly and evenly. This fast drying feature not only speeds up the overall printing process, but also helps maintain the integrity and quality of printed images, preventing smearing and allowing for immediate processing.


Full Alloy Printhead Maintenance Station

The printer features a full alloy printhead maintenance station that increases ease of use and convenience. This durable maintenance station ensures that the printheads are kept in top condition with minimal effort, extending their lifespan and maintaining consistent print quality.


Thickened Alloy Rail Beam for Enhanced Stability

The printer is built with a thickened alloy rail beam that provides exceptional mechanical stability. This robust structure minimizes vibrations and movement during the printing process, resulting in higher precision and better print quality even at high speeds.


Printhead Collision Prevention System

Equipped with a printhead collision prevention system, the printer significantly reduces the risk of printhead damage. This intelligent feature detects obstacles in the print path and prevents collisions, protecting the printheads and ensuring uninterrupted production. This system extends the lifespan of the printheads and minimizes costly downtime for repairs.

Model Ultra i3200 1904TP
Print Technology Sublimation Printing
Print Head EPSON i3200
Acceptable Media Type Transfer Paper
Width ≦1820mm
Ink Type CMYK Sublimation Ink
Ink Supply Siphon ink supply
Ink Cartridges Capacity Color Siphon
Color CMYK
Image Format Tiff, JPEG, EPS, PDF
RIP Software Maintop(standard) Photo Print/Print Factory(optional)
Print Resolution Maximum
Speed Mode 2S 4H
3 Pass 68㎡/hour 130㎡/hour
4 Pass 50㎡/hour 100㎡/hour
6Pass 35㎡/hour 70㎡/hour
Ink Drying Method Infrared Heater Drying
Control System Win10
Power 6600W
Interface USB3.0 / Gigabit Ethernet
Power Supply AC 220V±10%, 50/60 HZ
POWER SUPPLY 3KVA
Packaging Size Inch L:138.59 x W:44.10 x H:43.31 1 Inch=25.4 mm
Meter L:3.52mx W:1.12mx H:1.1m
Printer Size Inch L:129.93 x W:39.38 x H :70.87 1 Inch=25.4 mm
Meter U: 3.3m x W:1m x H:1.8m
Weight General 1518 lb. 690 kg 1kg=2.2 lb.
Northwest 1100 lb. 500 kg 1kg=2.2 lb.
Environment Power On Temperature 59℉ to 90℉[15℃ to 32℃] Humidity: 35% to 80% (No Condensation)
Power Off Temperature 41℉ to 104℉[5℃ to 40℃] Humidity: 35% to 80% (No Condensation)
Safety Certificate CE Certified


✱About 10% speed may vary depending on different feather printing modes and different PC configurations. All data is subject to change without notice.
