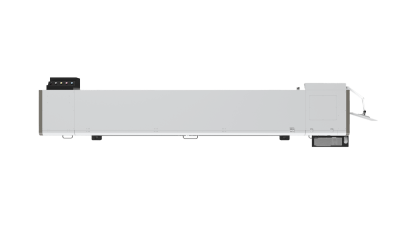

Wit-Color Multicolor Digital UV Printer Ultra i3200 3304-DMFT


  • Print Width: 3.2m
  • Print Head: Epson i3200
  • Print Head Quantity: 4 pcs
  • Inks: UV ink
  • RIP Software: PhotoPrint or Print Factory


Wit-Color UV printer Ultra i3200 3304-DMET

Use High Resolution for All Advertising Images
1. Epson i3200 Print head
2. Maximum printing area is 3.2 m2
3. High Quality! High Resolution Better Performance!


High Configuration

The printer with integrated intelligent control system and Gen6 grayscale print heads achieves faster printing speeds and smoother ink jetting results.


Advanced Equipment

Equipped with high-quality guide rails and drag chains, the printer offers improved wear resistance and reduced noise levels. This ensures smoother operation and superior print quality.


High Stability

Using an all-steel welded frame with a robust hard oxidation and segmented adsorption platform, the printer provides exceptional stability during printing, ensuring consistently high print quality.


Wide Application

Able to print on a variety of materials, the printer demonstrates versatility in different applications.


Operation Panel

With its user-friendly interface, clear user pages and buttons, the printer provides efficient use with simple one-click printing operations.


Smart Ink Detection System

The printer monitors ink levels It has a real-time ink detection system to monitor the ink flow and thus prevents interruptions and downtime caused by ink depletion. This feature ensures continuous production without delays.

Model Ultra i3200 3302/4
Print Technology UV Printing
Print Head EPSON i3200
Acceptable Media Type Outdoor Eco-solvent Based Roll Media (Flexible, Vinyl, Backlit Materials, PP, etc.)
Width ≦3200mm
Ink Type CMYK UV Ink
Ink Supply Siphon ink supply
Ink Cartridges Capacity Color Siphon
Color CMYK
Image Format Tiff, JPEG, EPS, PDF
RIP Software Maintop(standard) Photo Print/Print Factory(optional)
Print Resolution Maximum
Speed Mode 2S 4H
3 Pass 25㎡/hour 48㎡/hour
4 Pass 18㎡/hour 32㎡/hour
6Pass 12㎡/hour 22㎡/hour
Ink Drying Method UV drying
Control System Win10
Power 1250W
Interface USB3.0 / Gigabit Ethernet
Power Supply AC 220V±10%, 50/60 HZ
POWER SUPPLY 3KVA
Packaging Size Inch L:138.59 x W:44.10 x H:43.31 1 Inch=25.4 mm
Meter L:3.52mx W:1.12mx H:1.1m
Printer Size Inch L:192.92 x W:51.19 x H :69.69 1 Inch=25.4 mm
Meters L: 4.9 m x W: 1.3 m x H: 1.77 m
Weight General 1760 lb. 880 kg 1kg=2.2 lb.
Northwest 1560 lb. 780kg 1kg=2.2 lb.
Environment Power On Temperature 59℉ to 90℉[15℃ to 32℃] Humidity: 35% to 80% (No Condensation)
Power Off Temperature 41℉ to 104℉[5℃ to 40℃] Humidity: 35% to 80% (No Condensation)
Safety Certificate Security Certificate


✱About 10% speed may vary depending on different feather printing modes and different PC configurations. All data is subject to change without notice.

Request a Quote

Please fill out the form to receive a personalized price quote for the product you have viewed. Our sales team will get back to you as soon as possible.
