Docan UV H3000 Large Size Digital UV Printing Machine
Docan UV H3000 Large Size Digital UV Printing Machine

Docan UV H3000
Large Size Digital UV Printing Machine

Meet Your Industrial Production Needs with 3.2 Meter Large Format

The H3000 body is manufactured with integral welding technology, solid and durable. It adapts to all your production scenarios with multiple module options.
3.2 meter wide printing format, high precision, stability, productivity, multi-material compatibility and environmentally friendly features meet your industrial production needs.


3.2*2m Printing Width

3.2*2m hard anodized vacuum table, suitable for most flat surface materials.

Printhead Arrangement

Ricoh printheads maximum 4 rows, Konica 3 rows.

Y-Axis Mechanical Drive System

Y-axis belt driven, economical and easy to maintain.


Key Technology Features

Discover the revolutionary technology of H3000, unique printing experience experience.

Heavy Duty Chassis

The high rigidity chassis with full steel structure is designed for high load, fast printing and complex industrial environments.

  • The high rigidity steel chassis provides superior stability and precision by reducing vibration
  • It can print larger and heavier materials and offers long service life
  • It adapts to complex industrial environments with high rigidity, stability and deformation resistance

Multi-Module Design Options

Adapts to your more complex and diverse production needs with multi-functional module options.

  • Super fast printing with H3000M (standard) maximum 4-row Ricoh print head, upgradeable to H3000MT (maximum 3-row Kyocera head)
  • H3000M (standard) maximum 3.2*2m print width, upgradeable with H3000LM (3.2*2.5m) or H3240 (3.2*4m), suitable for non-standard advertising materials
  • H3000M (standard) only flatbed printing, can do roll printing with H3000RM (3.2m roll printing unit can be added) or H3000RLM (3.2m roll unit, 3.2m*2.5m platform)

Y-axis Double Metallic Scale, Double Motor Drive

Y-axis is equipped with double servo motor and double metallic scale, the peak of industrial performance, speed, precision and is ideal for areas requiring reliability.

  • Double-metal scale, high-precision position feedback, dynamic compensation ensures consistency throughout the print
  • Dual servo motors provide higher thrust and balance, increasing dynamic response and precision, solving stability issues at high speeds and loads

Technical Specifications

Learn the detailed technical specifications of H3000, meet your professional needs.


Print Area 3200mm×2000mm
Print Height Maximum 100mm
Print Resolution Maximum 604×2400dpi
Print Speed Konica 1024A (6PL):4Pass(3 Rows): 75~84m²/hour
6Pass(3 Rows): 54~65m²/hour
8Pass(3 Rows): 47~54m²/hour
Ricoh Gen6 (5PL):4Pass(4 Rows): 60~72m²/hour
6Pass(4 Rows): 52~60m²/hour
8Pass(4 Rows): 36~42m²/hour
Kyocera (3.5L):4Pass(2 Rows): 60m²/hour
6Pass(2 Rows): 45m²/hour
8Pass(2 Rows): 34m²/hour
Printhead Configuration Konica 1024A (6PL), Ricoh Gen6 (5PL), Kyocera (3.5L)
Number of Printheads Konica 1024A (6PL):4~18 pcs
Ricoh Gen6 (5PL):2~16 pcs
Kyocera (3.5L):2~10 pcs
Ink Colors CMYK/LC/LM+W+V
Curing Method UV LED Light
Image Format TIFF, JPEG, EPS, PDF
RIP Software SAI/ONYX/Caldera
Power Requirements AC220V 50/60HZ 10KW 45A
Environmental Requirements Temperature: 20℃~28℃ Humidity: 40%~60%
Ink Tank Capacity 2L
Device Dimensions 5600mm × 3100mm × 1540mm
Equipment Weight 2580kg

Request a Quote

Please fill out the form to receive a personalized price quote for the product you have viewed. Our sales team will get back to you as soon as possible.

Digital Printing Our Products

All Products
Docan
Industrial Hybrid UV Printing Machine
Docan UV FR6600
New Super Wide Format Fast Roll Printer With its 6.6 meter super wide printing area, standard 4 rows (optional 6 rows) print head, it meets…
Discover
Wit-Color
Sublimation 1.8m Epson i3200 1908DS
Ultra i3200 1908TP
Wit-Color Transfer Paper Printer Ultra i3200 1908TP Print Width:1.8m Print Head: Epson i3200 Print Head Quantity: 4pcs Inks: Sublimation RIP Software: PhotoPrint or Print Factory…
Discover
Audley
DTF Printing Machine
Audley S2030
High Quality Printing Performance: The Audley S2030-X5 DTF printer features dual XP600 F1080A1 heads that enable fast and precise printing up to 30 cm. This…
Discover
Wit-Color
Roll to Roll 3.2 Epson i3304UV
Ultra i3200 3302
Wit-Color Multicolor Digital UV Printer Ultra i3200 3304-DMFT   Print Width: 3.2m Print Head: Epson i3200 Print Head Quantity: 4 pcs Inks: UV ink RIP…
Discover
Docan
Flatbed UV Digital Printing Machine Ricoh Gen6 / Epson i3200-U1
Docan H1216
Faltbed Printing Size 120x160 It provides the opportunity to print on all kinds of hard and soft surfaces, Glass, Acrylic, Chipboard, MDF, PVC Foam, Aluminum,…
Discover
Docan
Roll to Roll UV Printing Machine
Docan UV W1216
AI Visual Auto-positioning - Print While Scanning, Higher Efficiency W1216 bids farewell to printing patterns by using the latest visual auto-positioning technology. It automatically positions…
Discover
CenturyStar
Century Star 3.20 Flag Printing Machine
CenturyStar CSP-3200
Capacity to print up to 320 cm wide High speed and resolution with a total of 8 Epson i3200 print heads Compatible with CMYK dye…
Discover
Wit-Color
Eco-Solvent 1.8m Epson i3200 1904s
Ultra i3200 1902/4
Wit-Color Eco-Solvent Latest Multicolor Digital Label Press Ultra i3200 1904 Print Width: 1.8m Print Head: Epson i3200 Print Head Quantity: 4/2 pcs Inks: Eco-solvent RIP…
Discover
Wit-Color

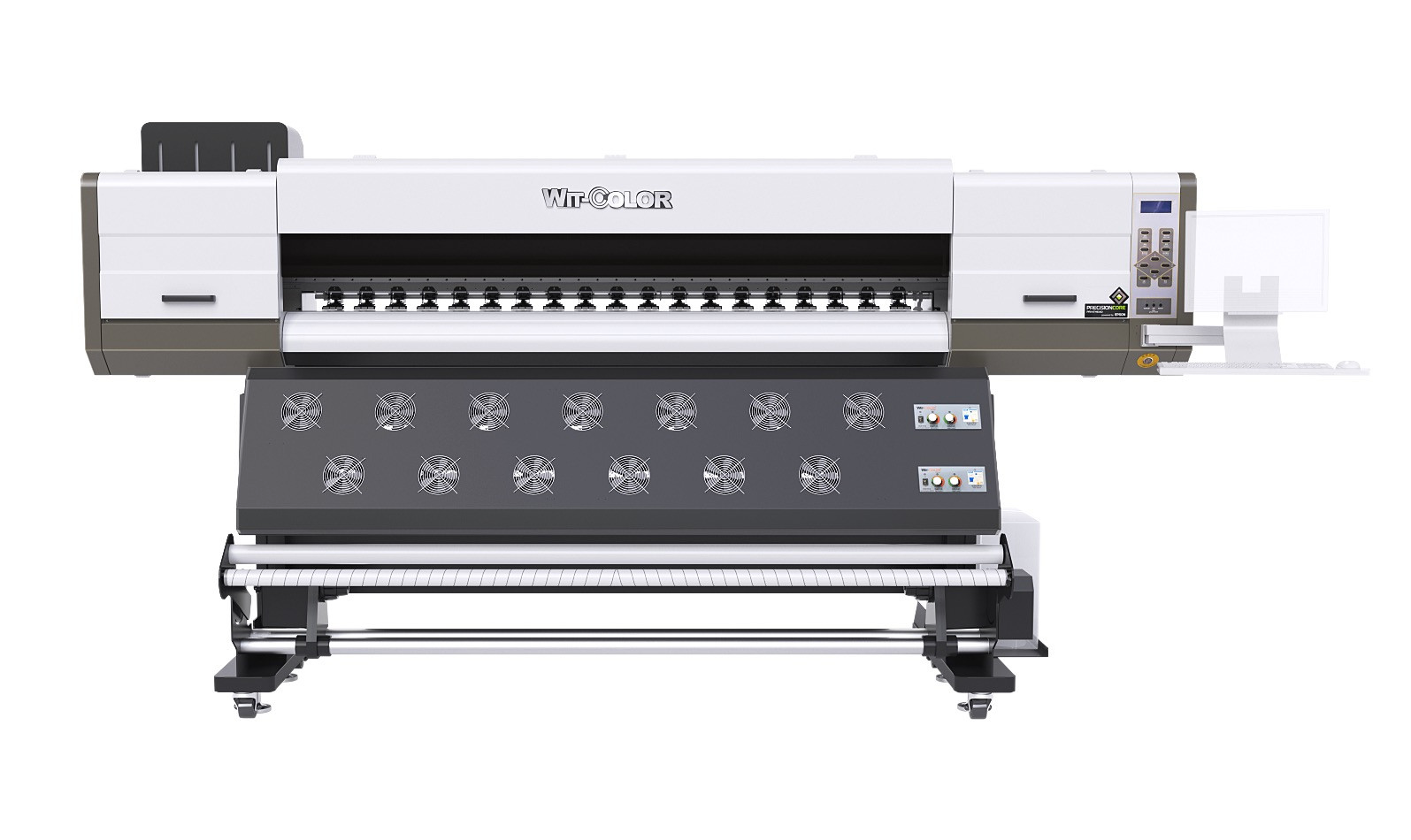

Sublimation 1.8m Epson i3200 1904DS
