Docan UV W1216
Roll to Roll UV Printing Machine
AI Visual Auto-positioning - Print While Scanning, Higher Efficiency
W1216 bids farewell to printing patterns by using the latest visual auto-positioning technology. It automatically positions and matches the printing pattern during printing. Increases production efficiency.
The flagship model with image positioning feature, automatically recognizes various shaped materials and prints precisely on the platform, providing unlimited possibilities for your creativity.
1.2m print width.
Print Head ArrangementRicoh print head up to 3 rows.
Y-axis Mechanical Drive SystemY-axis belt drive, economical, efficient and easy to maintain.
Key Technology Features
Discover the revolutionary technology of W1216, experience a unique printing experience.

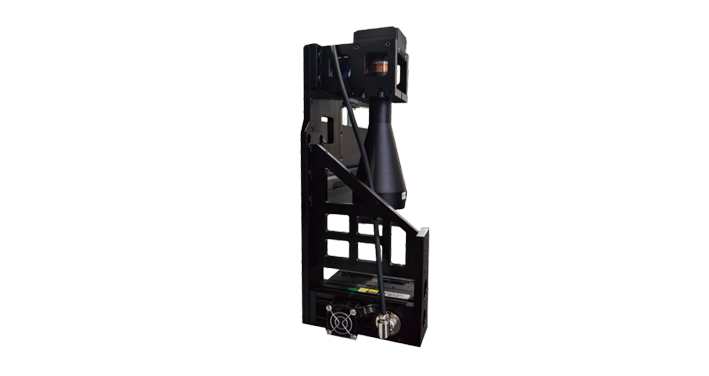

AI Visual Automatic Positioning - Print While Scanning
Automatic positioning and print pattern matching in mass printing of products, automatic control and printing. More precise positioning and higher efficiency.
- AI visual positioning algorithm, intelligent recognition and positioning, no mold required
- High precision in special-shaped printing, perfect matching
- Multiple visual intelligent matching, no editing required
Automatic Belt Printing Cycle, Continuous Printing
Printing while walking, automatic collection and continuous continuous printing with closed-loop belt transfer system printing.
- Closed loop belt transfer, suitable for continuous production, long service life
- Printing platform protruding, easy automatic collection to the back box
1.2m High Hole Density Belt
Equipped with 1.2m closed loop high density hole belt. High hole density facilitates air suction and increases the adhesion of the printing material.
- 1.2m closed loop one-piece belt, no joints, durable
- High hole density belt, strong suction, material does not move
Technical Specifications
Learn the detailed technical specifications of W1216, meet your professional needs.
| Print Area | 1200mm |
| Print Height | Maximum 100mm |
| Print Resolution | Maximum 726×1200dpi |
| Print Speed | Ricoh Gen6(5PL): 4Pass(3 Row): 15~18m²/s 6Pass(3 Rows): 10~12m²/s 8Pass(3 Rows): 7~9m²/s |
| Printhead Configuration | Ricoh Gen6(5PL) |
| Number of Printheads | 2~5pcs |
| Ink Colors | CMYK/LC/LM+W+V |
| Curing Method | UV LED Light |
| Image Format | TIFF, JPEG, EPS, PDF |
| RIP Software | SAI/ONYX/Caldera |
| Power Requirements | AC220V 50/60HZ 7KW 32A |
| Environmental Requirements | Temperature: 20℃~28℃ Humidity: 40%~60% |
| Ink Tank Capacity | 2L |
| Device Dimensions | 2200*3000*1400mm |
| Equipment Weight | 720kg |
Request a Quote
Please fill out the form to receive a personalized price quote for the product you have viewed. Our sales team will get back to you as soon as possible.
Digital Printing Our Products
All Products
Caspijet CJ-T3
Print Head: HP A3 (HP FI-1000) and Epson
Print Speed: 20-40m/min
Feed Width: 60cm (Customization Support)
Print Height: 18cm (Customization Support)
Top Print Width: 30cm…
Discover

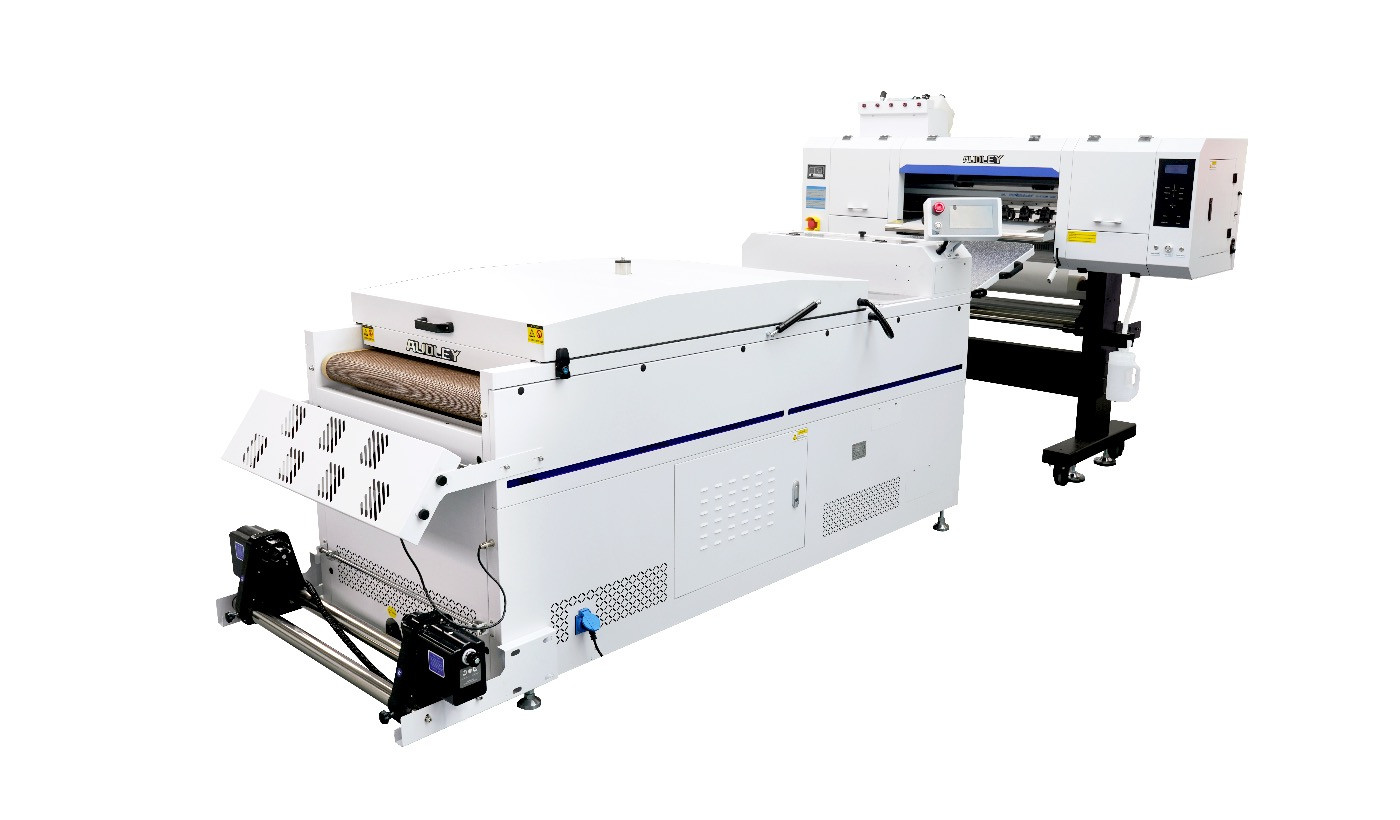

Aleron L808+D808
