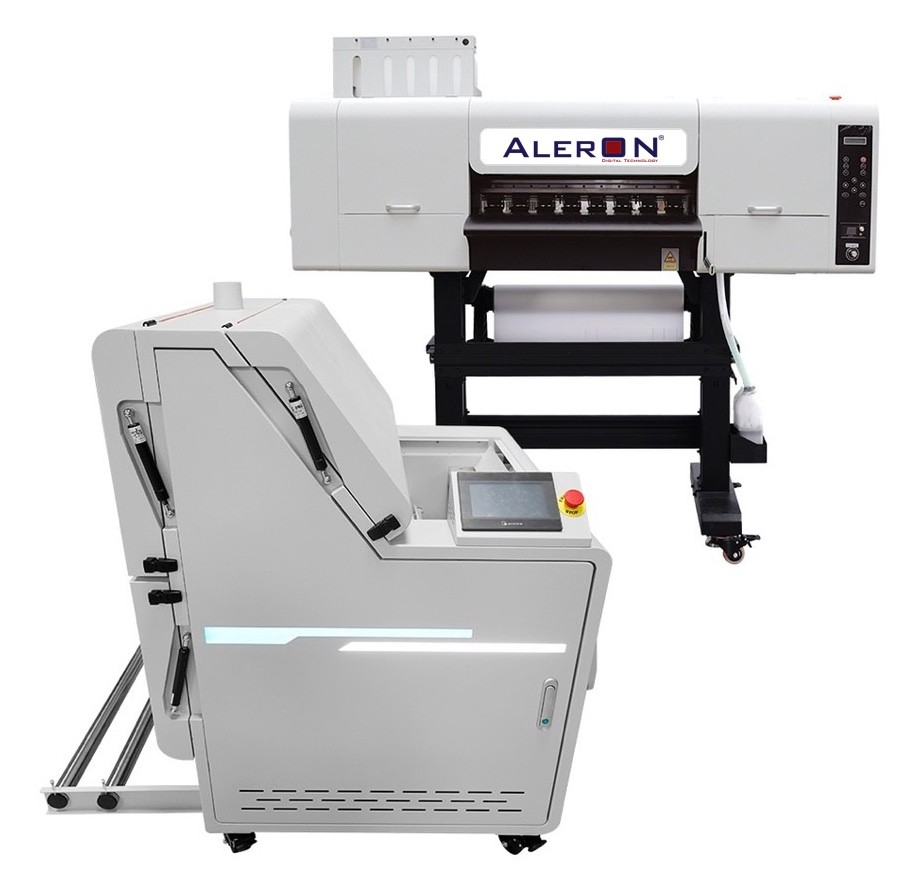

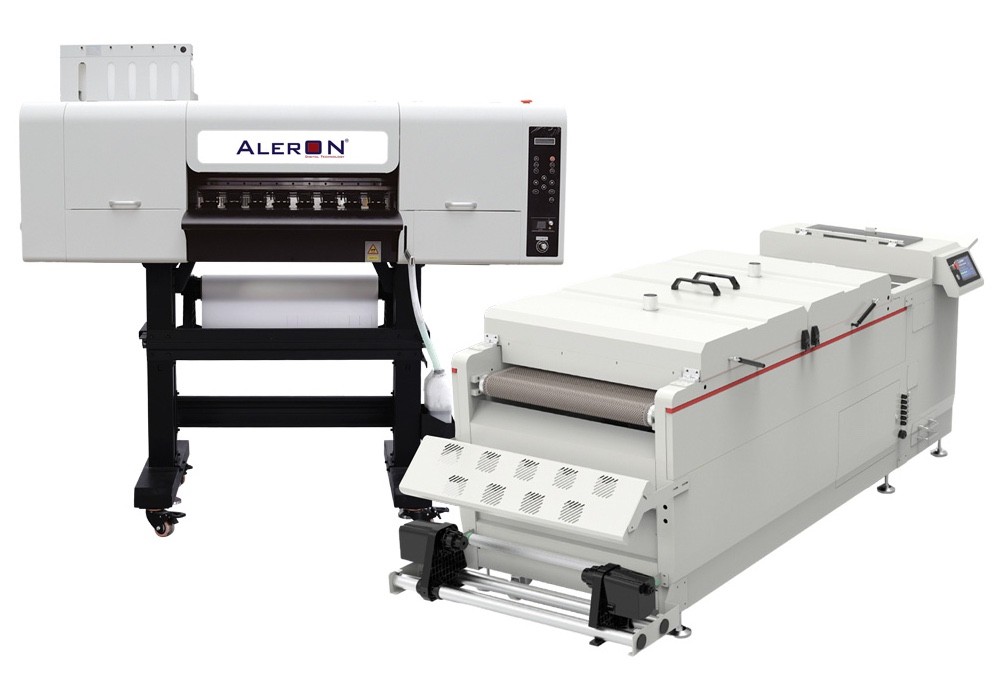

Aleron C605+H602
DTF Printing Machine 5 Head Epson I3200-A1
It can be applied to a variety of fabrics, such as nylon, chemical fiber, cotton, and more. It boasts high productivity and is suitable for efficient printing and bulk direct film orders.

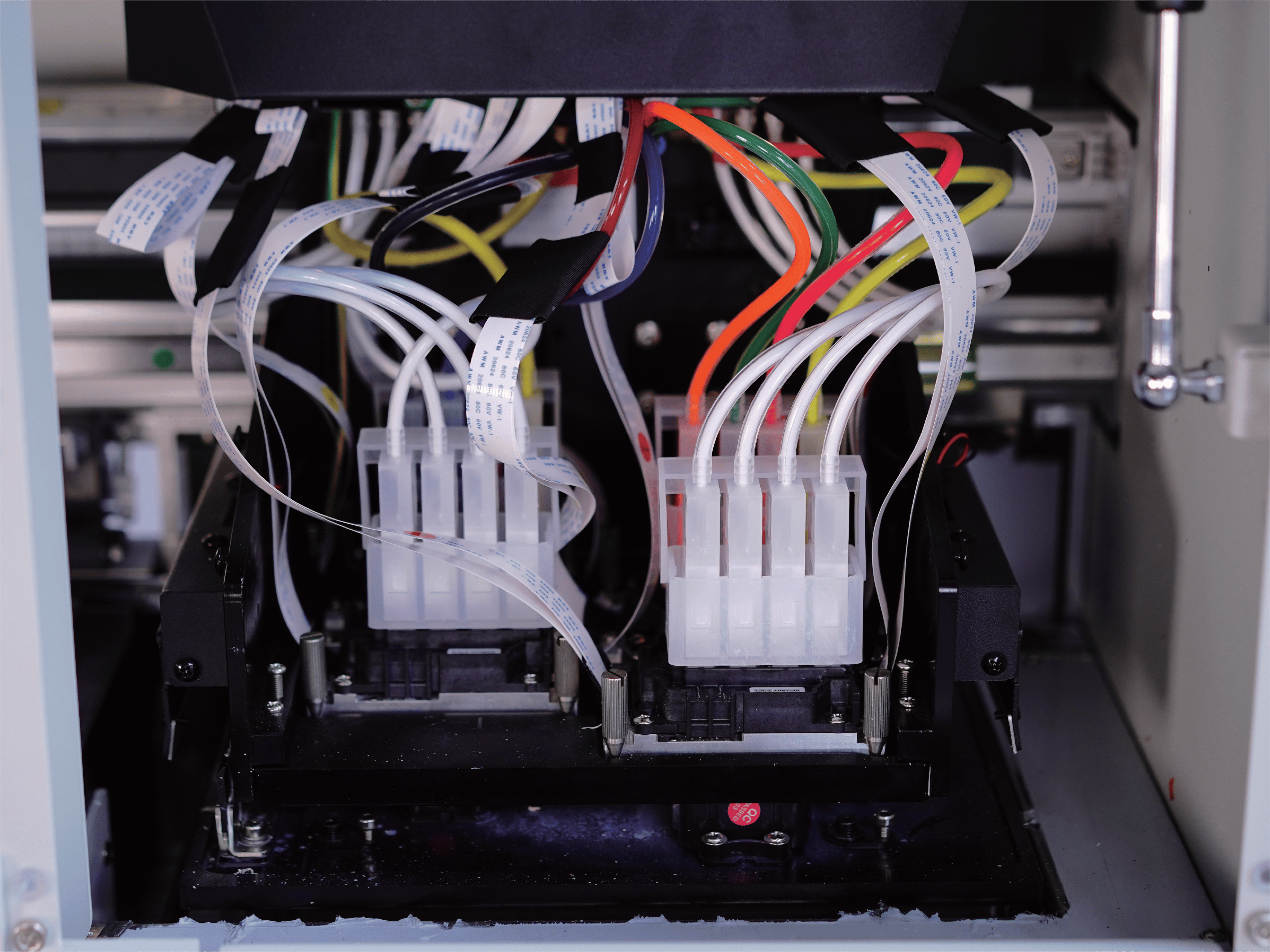

With its Precisioncore technology, high speed, and high resolution, the I3200-A1 printhead is the latest and most efficient model for textile printing. It comes with superior nozzles that keep the printhead clean without interruption, automatic flash spraying, and humidification functions.
A cutting-edge printing machine developed with advanced technology, offering high precision, speed, and stability for the success of your business.

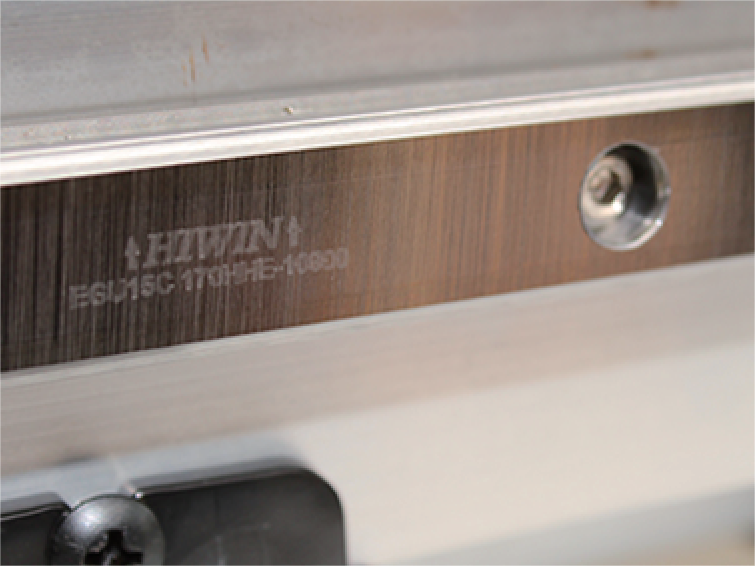

Silver Guide Rail

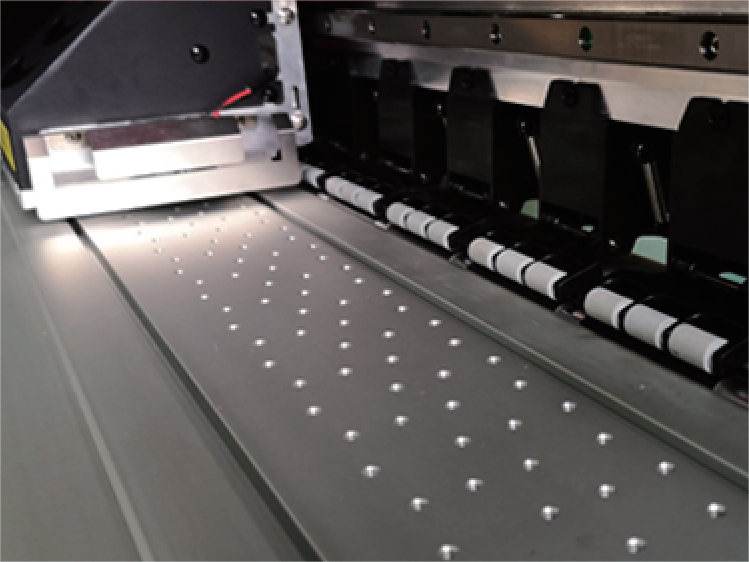

Main Platform
Main Platform

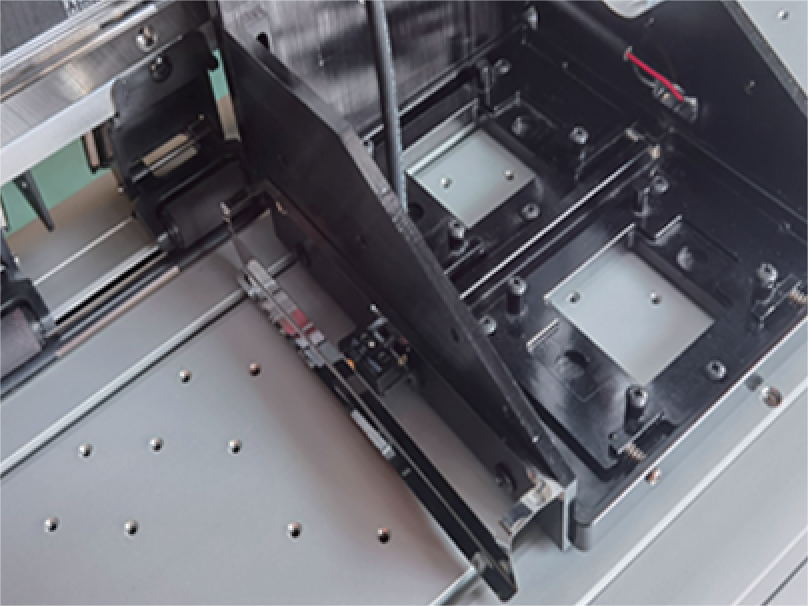

Anti-Collision Sensor
| Model | C602 |
|---|---|
| Print Head and Quantity | 5 PCS I3200-A1 |
| Print Speed | 6 Pass: 28 m/h |
| Print Width | 24" |
| Media Type | Pet Film |
| RIP Software | Standard Optional CAD Connectivity with Printfactory, Maintop, RIN, PhotoPrint |
| Temperature | 20-30°C |
| Humidity | 45-65% |
| Power | 350W |
| Machine Size | L1670*W815*H1600mm |
| Package Size | L2025*W840*H740mm |
| Net Weight | 150KG |
| Gross Weight | 210KG |
| Voltage | 110V/220V |
Technical Parameter of Powder Shaking Machine
| Model | H6502 |
|---|---|
| Applicable Materials | Nylon, chemical fiber, cotton, leather, diving fabric, PVC, EVA, etc. |
| Retractable Media Width | 24" |
| Fan Control | Dust shake control, dust direction and quantity control |
| Rewind Function | Automatic induction winding |
| Material Conveying Method | Mesh belt conveyor, conductive tape |
| Heating and Drying Function | Efficient and powerful drying and curing |
| Rated Voltage | 110V / 220V |
| Rated Current | 48A |
| Rated Power | 10 kW |
| Energy Consumption | 6 kW – 10 kW |
| Machine Dimensions | U2806 × W1092 × H1076 mm |
| Package Dimensions | L2850 × W1180 × H1213 mm |
| Net Weight | 335 kg |
| Gross Weight | 400 kg |
