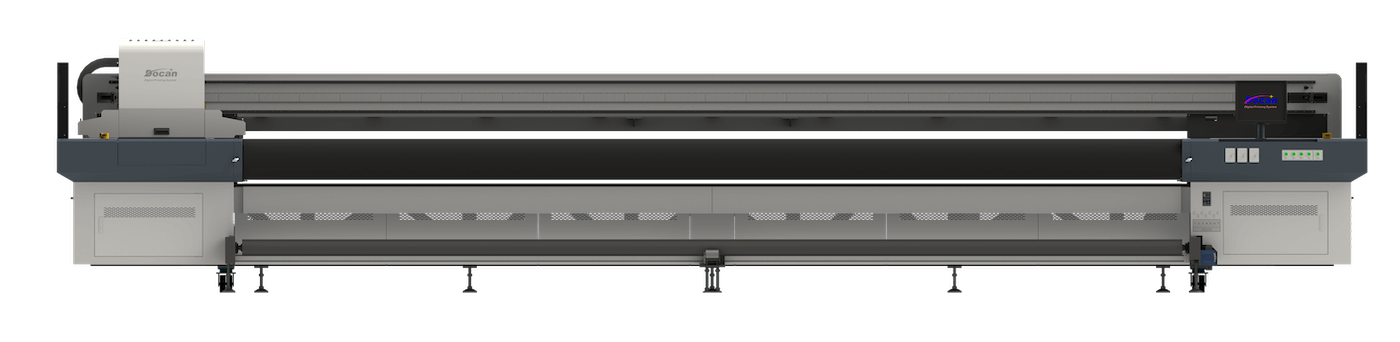

Docan UV FR6600
Industrial Hybrid UV Printing Machine
New Super Wide Format Fast Roll Printer
With its 6.6 meter super wide printing area, standard 4 rows (optional 6 rows) print head, it meets all your needs such as high speed full color, color-white-color, color-white-black-white, fast color-white and multi-roll printing.
A model that redefines industry standards, offers high precision, speed and quality together, can print 2 rolls of 3.2 meters or 4 rolls of 1.5 meters of material at the same time, increases production capacity and supports double layer printing effect on one side.
6.6 Meter Printing Width
6.6 meter super wide printing area, larger printing options
Print Head ArrangementKonica print head maximum 4 rows
Front and Rear Double Roller Material Feeding SystemSynchronized operation with double rollers, high stability, able to carry heavy rollers, ideal for high-speed printing and long-run mass production
Key Technology Features
Discover the revolutionary technology of FR6600, experience a unique printing experience.
The Industry's First 6.6-Meter Industrial UV Printer
6.6-meter super-wide format roll printing solution is designed for industrial-level mass production.
- 6.6-meter super-wide format single-piece printing, no splicing required, single, double or three rolls simultaneously printing support
- DOCAN-exclusive technology, regional vacuum control system design for wide-format printing
- Material flattening with rear printing double roller system, wrinkling in wide-format printing prevention
Multi-Module Design Options
Adapts to your more complex and diverse production needs with multi-functional module options.
- FR6600 (standard) up to 4 rows of Konica printheads, upgrade to FR6606 up to 6 rows (maximum Konica), super-fast printing
- Optional winding heads for multi-roll printing support
Dual-Layer Single-Side, Versatile Applications
Offers flexible solutions with standard and multi-color combination modes.
- Dual-Layer Single-Side printing technology provides dark tone details and smooth transitions, increases color performance
- Multiple printing mode options such as Full Color, Color-White-Color, Color-White-Black-Color
- Compatibility with standard boards in the market, different materials and thicknesses
Technical Specifications
Discover the detailed technical specifications of FR6600, meet your professional needs.
| Print Area | 6600mm |
| Print Height | 1-50mm |
| Print Resolution | 540×1440dpi |
| Print Speed | Konica 1024A (6PL):4Pass(6 Row):162~192m²/s 6Pass(6 Row):120~132m²/s 8Pass(6 Row): 78~96m²/s Konica 1024i (13PL):4Pass(6 Row): 162~192m²/s 6Pass(6 Row):120~132m²/s 8Pass(6 Row): 78~96m²/s |
| Printhead Configuration | Konica 1024A (6PL), Konica 1024i (13PL) |
| Printhead Number | 4-48pcs |
| Ink Colors | CMYK/LC/LM+B |
| Curing Method | UV LED Light |
| Image Format | TIFF, JPEG, EPS, PDF |
| RIP Software | SAI/ONYX/Caldera |
| Power Requirements | 3PH AC380V 50/60HZ 27KW 70A |
| Environmental Requirements | Temperature: 20℃~28℃ Humidity: 40%~60% |
| Ink Tank Capacity | 5L |
| Device Dimensions | 9420mm × 2166mm × 1800mm |
| Equipment Weight | 7980kg |
Request a Quote
Please fill out the form to receive a personalized price quote for the product you have viewed. Our sales team will get back to you as soon as possible.
Digital Printing Our Products
All Products
Ultra i3200 5308
Wit-Color Eco-Solvent Large Format Professional Printer Ultra i3200 5308 Indoor Outdoor Printer
Print Width: 5.4m
Print Head: Epson i3200
Print Head Quantity: 8pcs
Inks: Eco-solvent…
Discover
Docan UV H2525
High-Efficiency UV Flatbed Printing Solution
H2525 improves production efficiency with 2.5m*2.5m printing size, innovative A/B surface cyclic printing technology and super-fast printing. It offers easy…
Discover

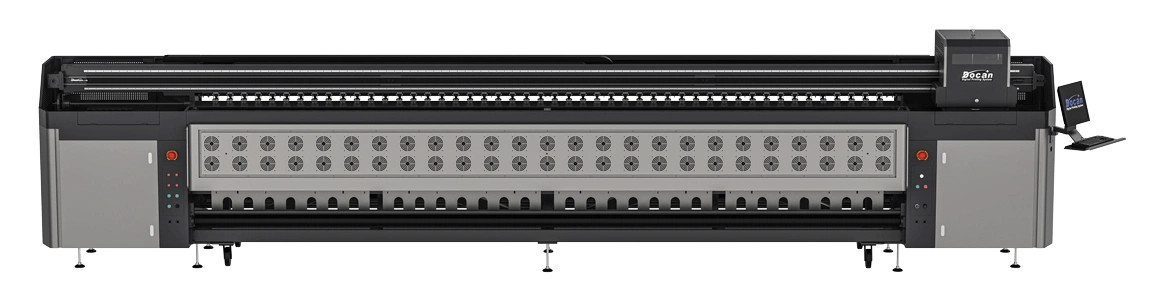

Ultra Star 5306
Wit-Color Ultra Star 5306 5.3-Meter Large Format Solvent Printer (Linear Motor)
5.3-meter solvent printer – designed for industrial-scale large-format printing applications.
Printheads: Equipped with StarFire…
Discover

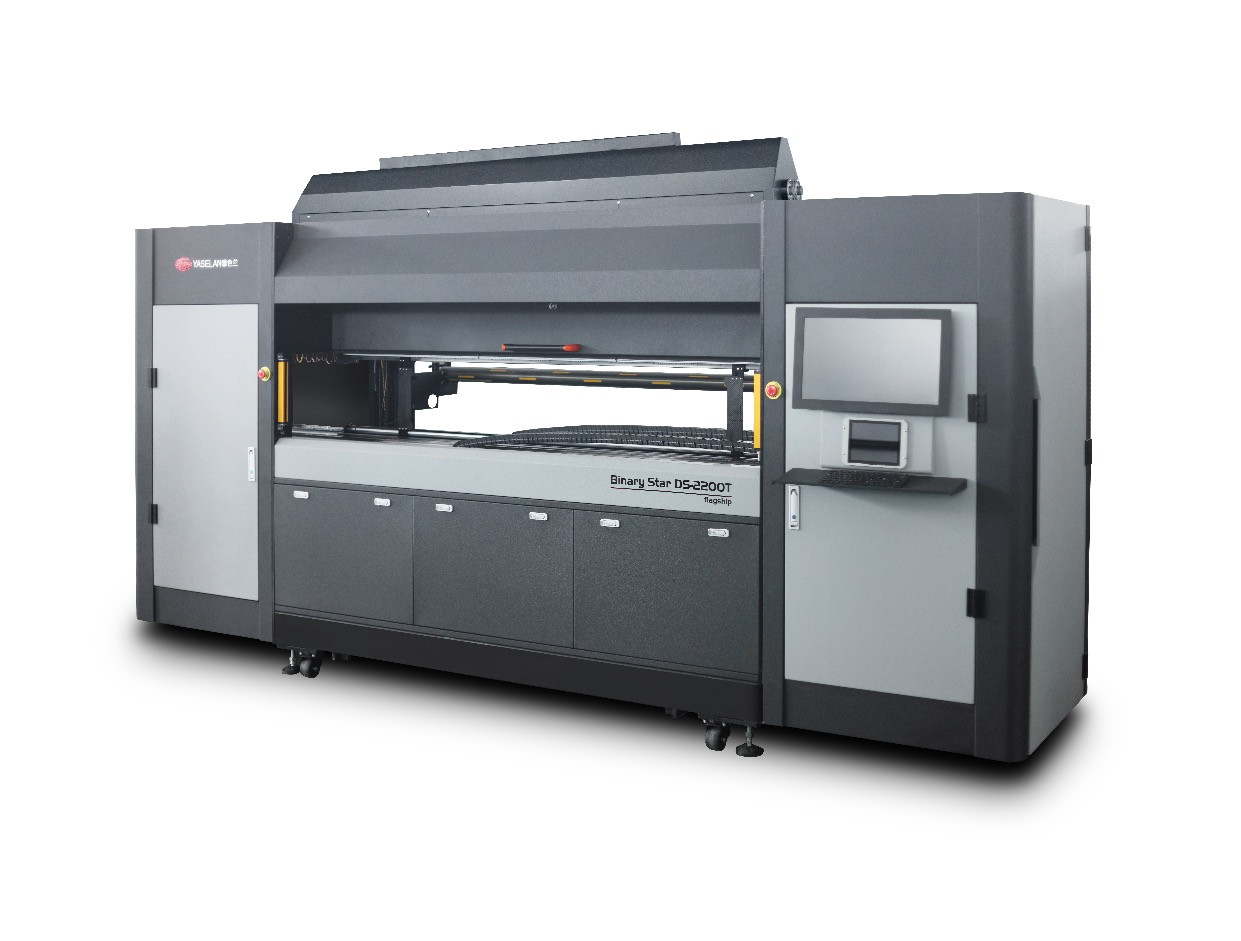

Yaselan Binary Star S10
Various Printhead Layout Modes
Supports C M Y K / C M Y K LC LM O B (FM,FY) 8 spot color customization solutions.
…
Discover
Double-Sided Flag Printing Machine 2.1m
Function and Characteristics
Daily output of 10,000 sqm, increasing production capacity
Equipped with 16 printheads; when printing in 1-pass mode with full-width coverage, the printing…
Discover

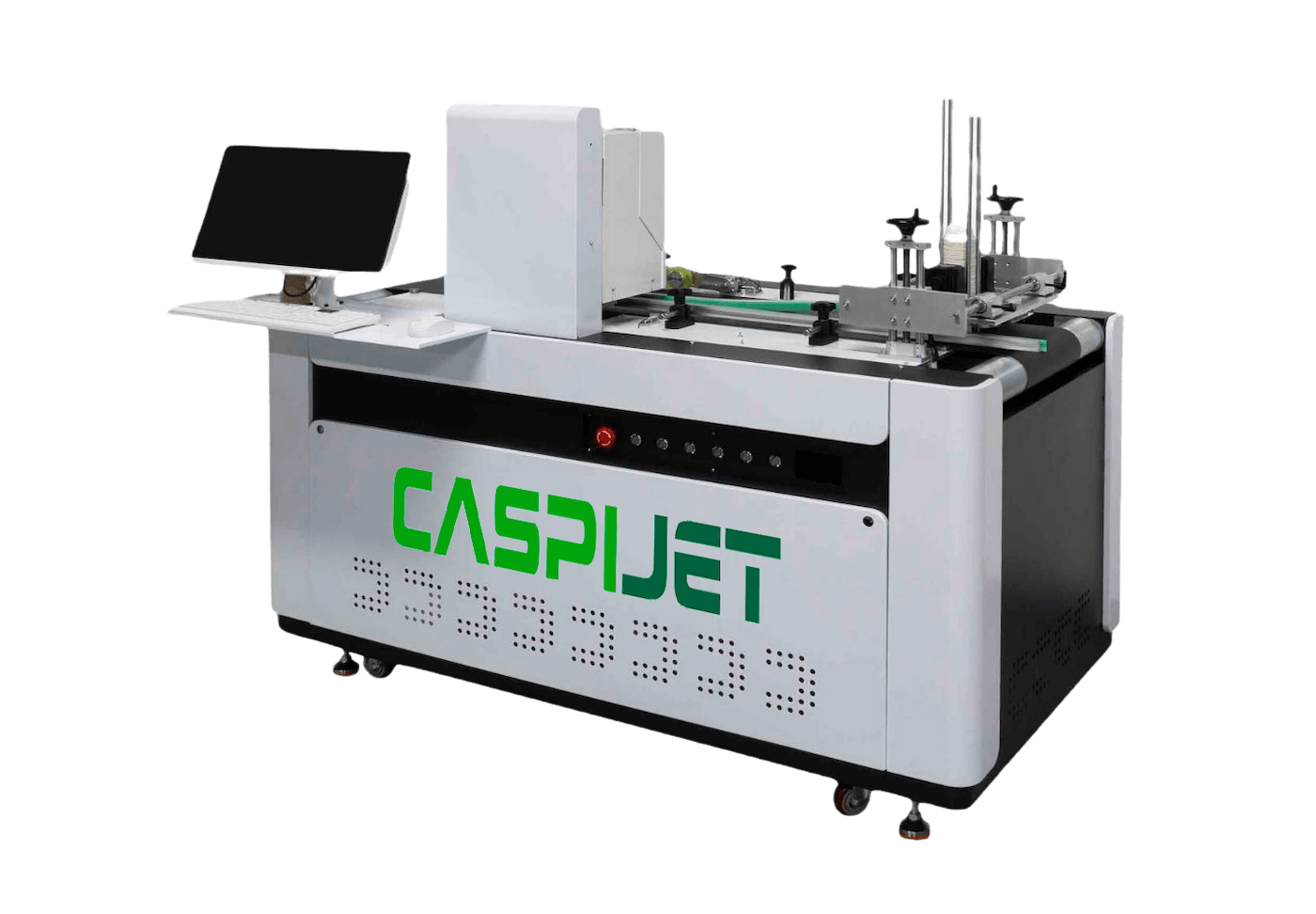

Caspijet CJ-T3
Print Head: HP A3 (HP FI-1000) and Epson
Print Speed: 20-40m/min
Feed Width: 60cm (Customization Support)
Print Height: 18cm (Customization Support)
Top Print Width: 30cm…
Discover

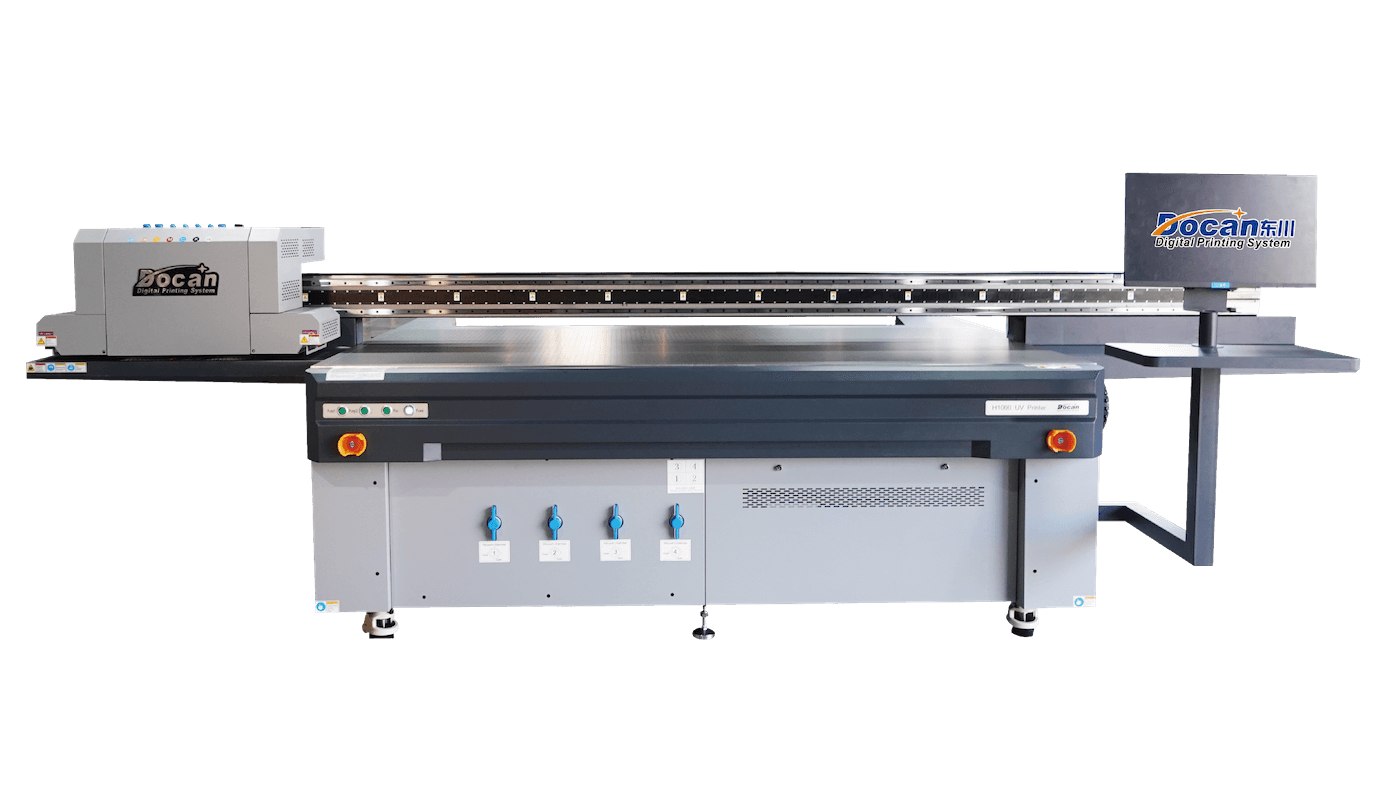

Docan UV H1000
A New Era in Flatbed Printing
H1000 offers high precision and quality direct printing solutions on materials such as glass, acrylic, wood, metal and plastic…
Discover

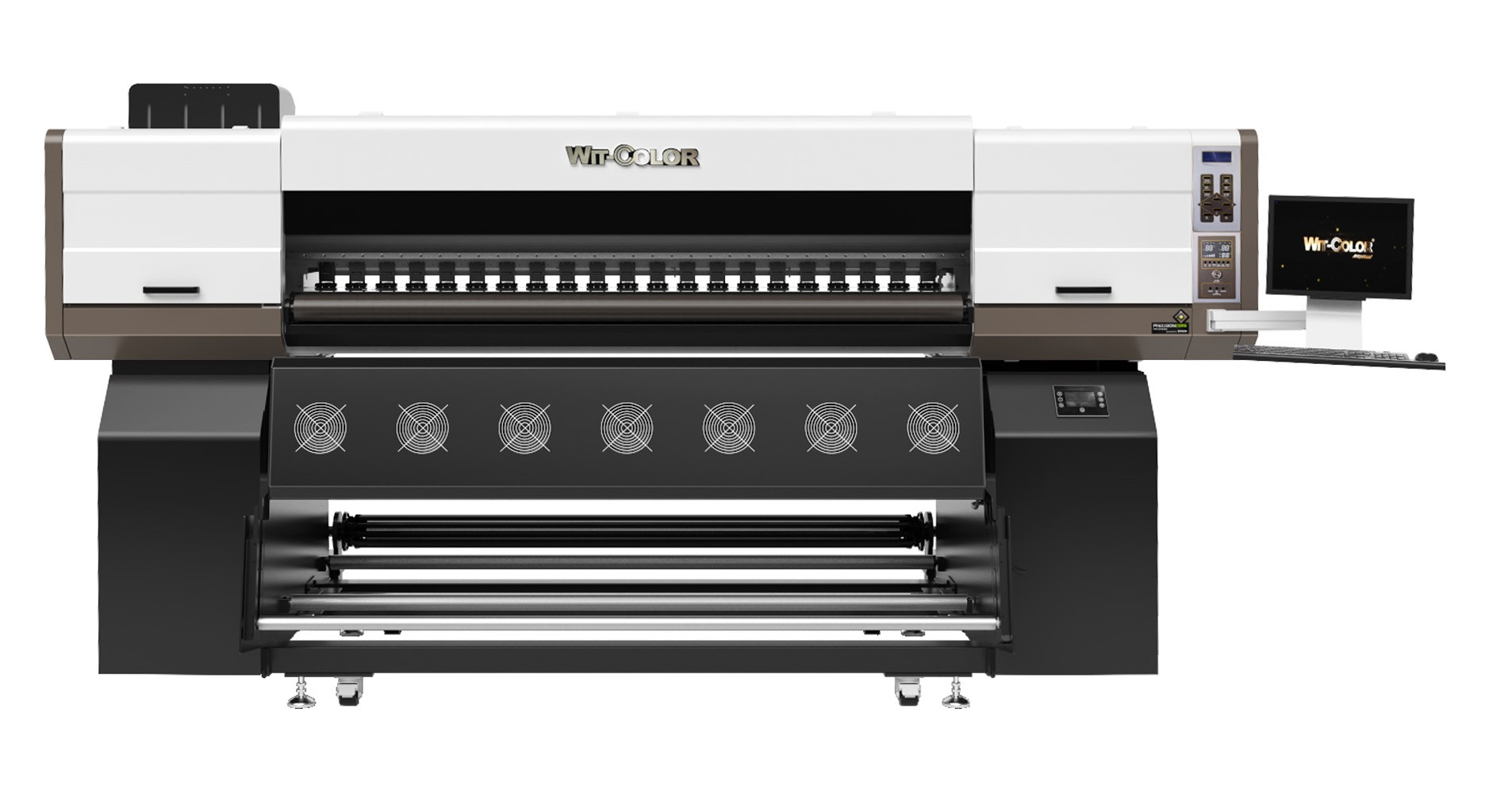

Ultra i3200 1904TP
Wit-Color Transfer Paper Printer Ultra i3200 1904TP Sublimation Ink EPSON
Print Width: 1.8 m
Print Head: Epson i3200
Print Head Quantity: 4/2pcs
Inks: Sublimation
RIP…
Discover

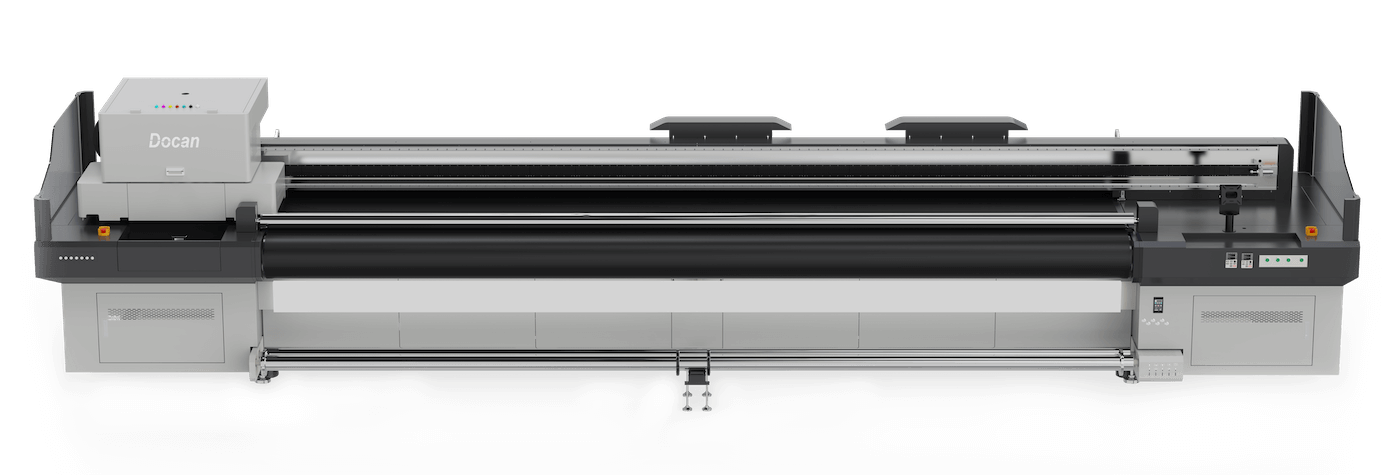

Docan UV FR3200
Classic Model High Precision UV Roll Printer
3.2 meters printing width, perfect wide format, versatile application solutions, perfect printing effects such as Single Side Double…
Discover

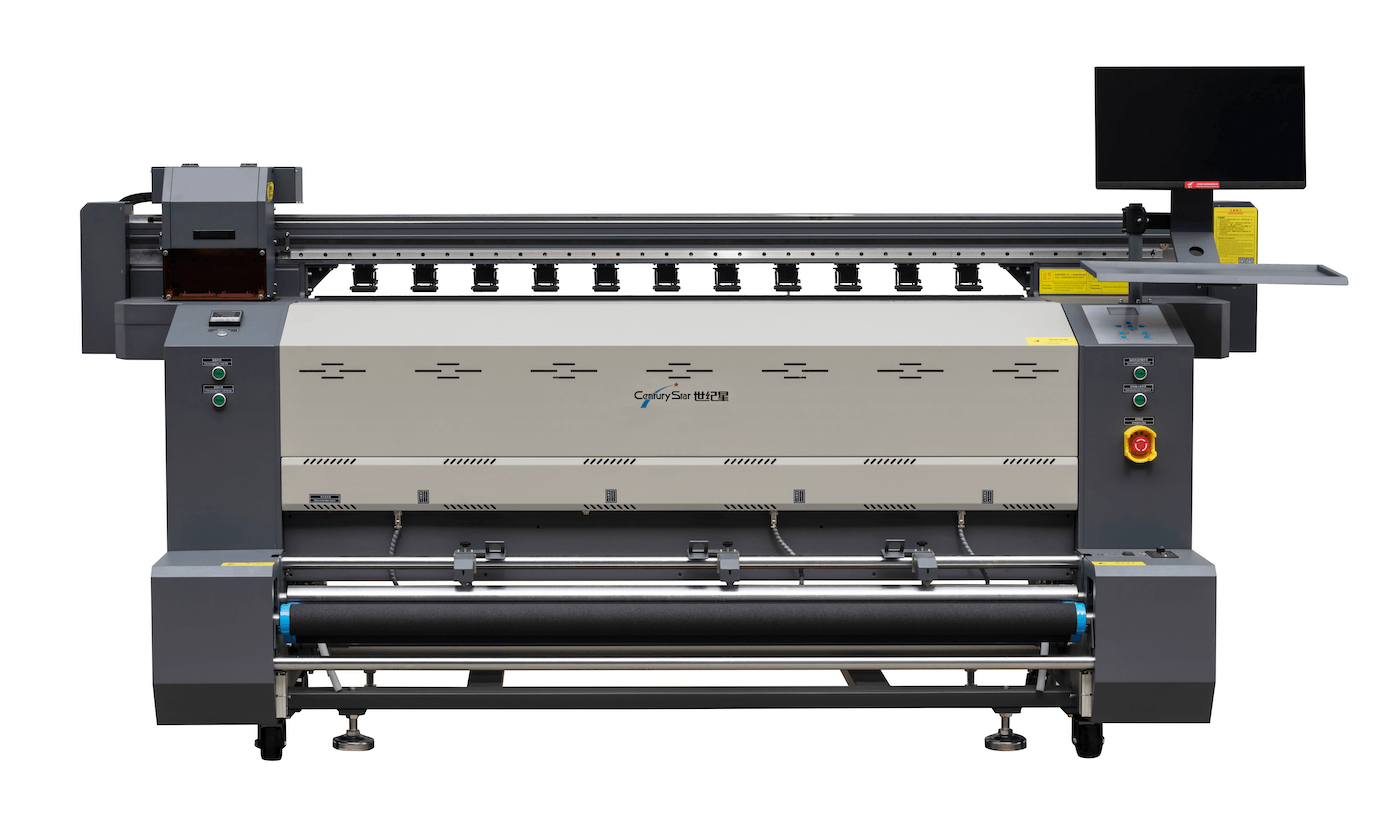

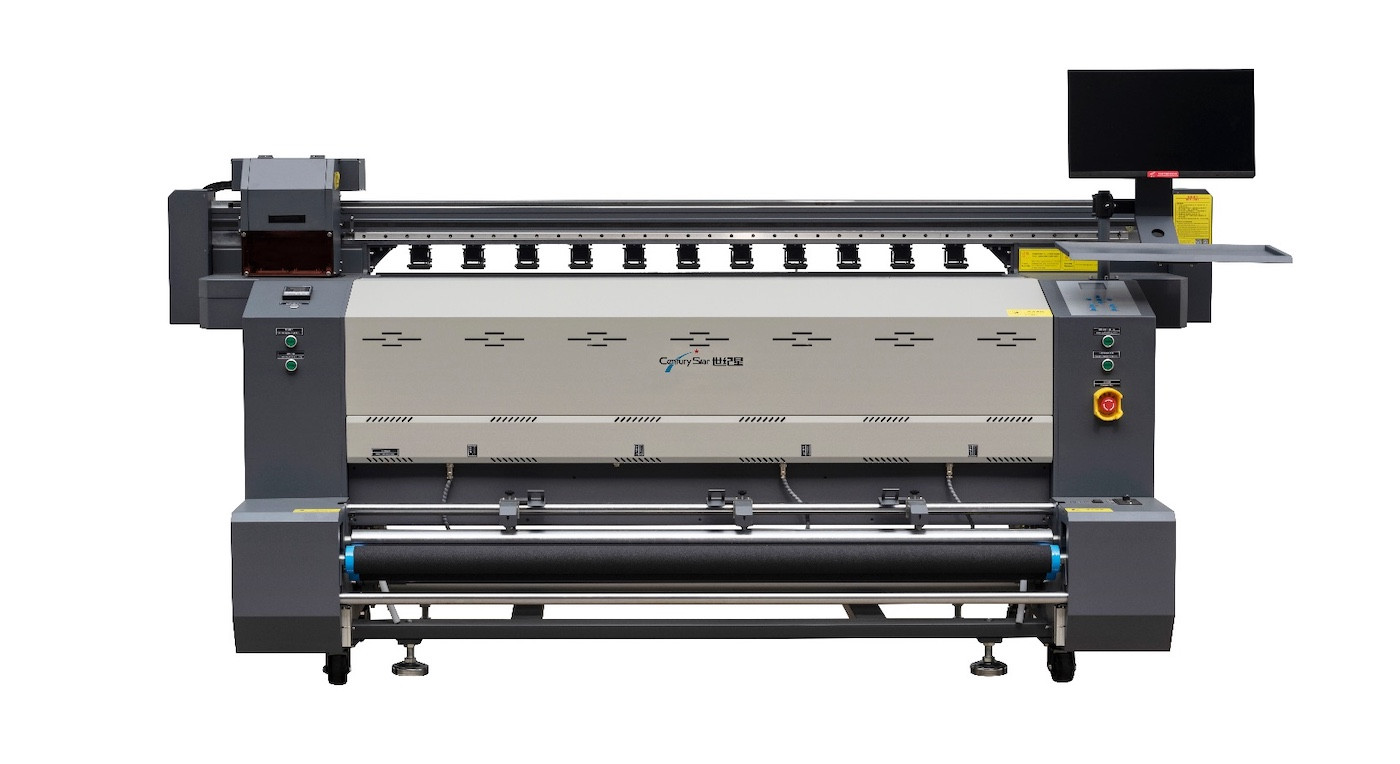

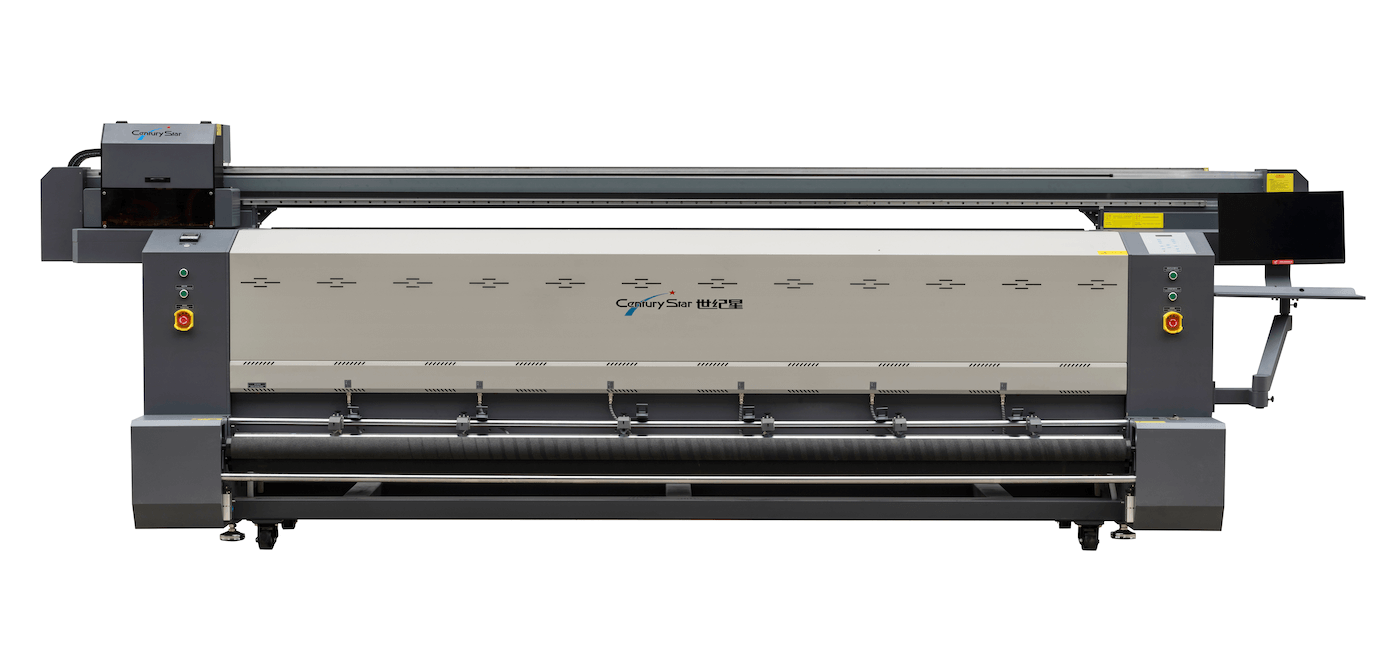

CenturyStar CSP-2100
