Docan UV FR3210 Hybrid UV Printing Machine
Docan UV FR3210 Hybrid UV Printing Machine

Docan UV FR3210
Hybrid UV Printing Machine

Versatile Options, Practical Printing

With both roll and sheet UV printing feature, FR3210 can print on flexible materials such as advertising posters, flexible film, pearl fabric, as well as rigid materials such as glass, ceramics, acrylic sheets, offering a wide range of applications.


3.2m Print Width

With 3.2m roll table (3.2*0.7m), versatile printing opportunity on both sheet and roll materials.

Print Head Arrangement

Ricoh print head maximum 4 rows, Konica 4 rows, Kyocera 2 rows.

Winding/Unwinding Control System

Single air shaft winding, air shaft+steel roller combination, ideal solution for complex materials and high precision printing needs.



Key Technology Features

Discover the revolutionary technology of the FR3210 and experience a printing experience like no other.

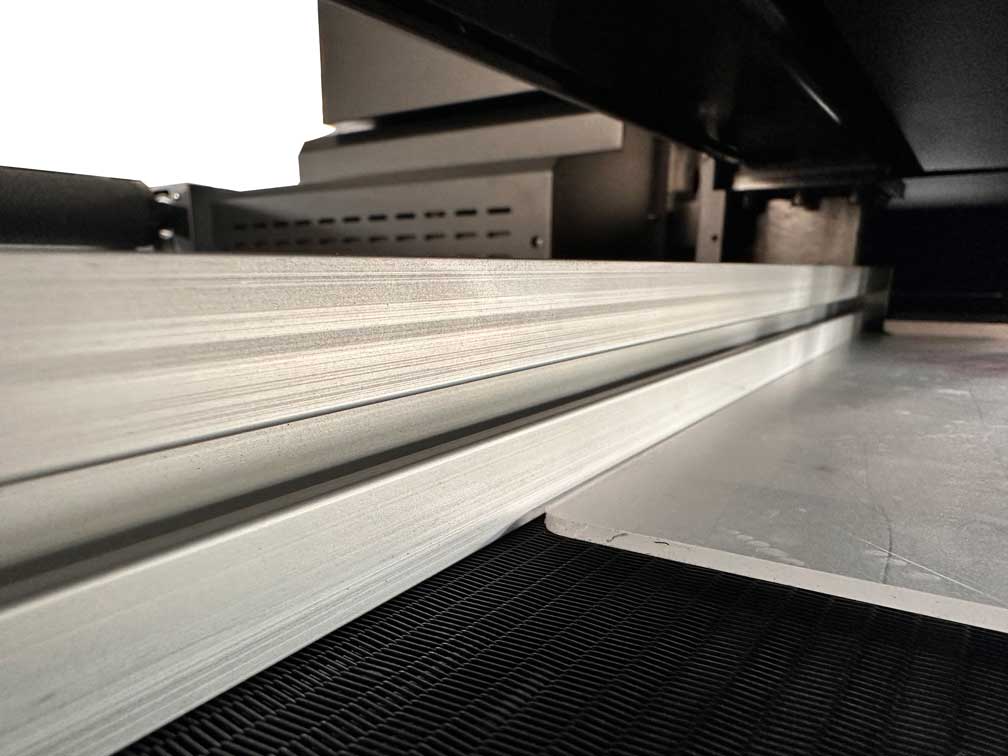

Precise Positioning Prevents Material Slippage

Print start position precision with standard positioning bars.

  • Fixes the starting position of the material during sheet printing with physical limitation design
  • Quick adjustment for sheets of different thickness and size, prevents material slippage in high-speed printing.
  • Quick loading by placing the material on the positioning bar, without requiring complicated alignment systems or manual calibration.

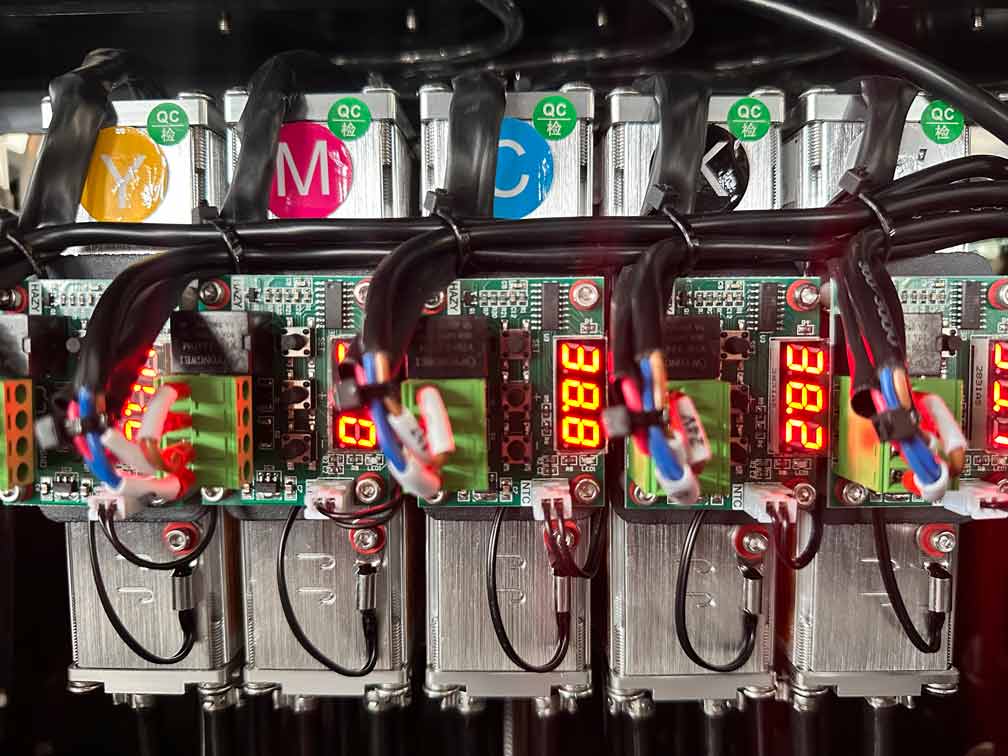

Independent Ink Pressure, Constant Ink Flow

Ink balance is achieved by finely adjusting the negative pressure inside the print head, preventing dripping.

  • Independent negative pressure for white and colored inks, stable ink flow
  • Negative pressure protection and feedback prevent ink backflow
  • Continuous negative pressure reduces the risk of print head clogging and extends its life

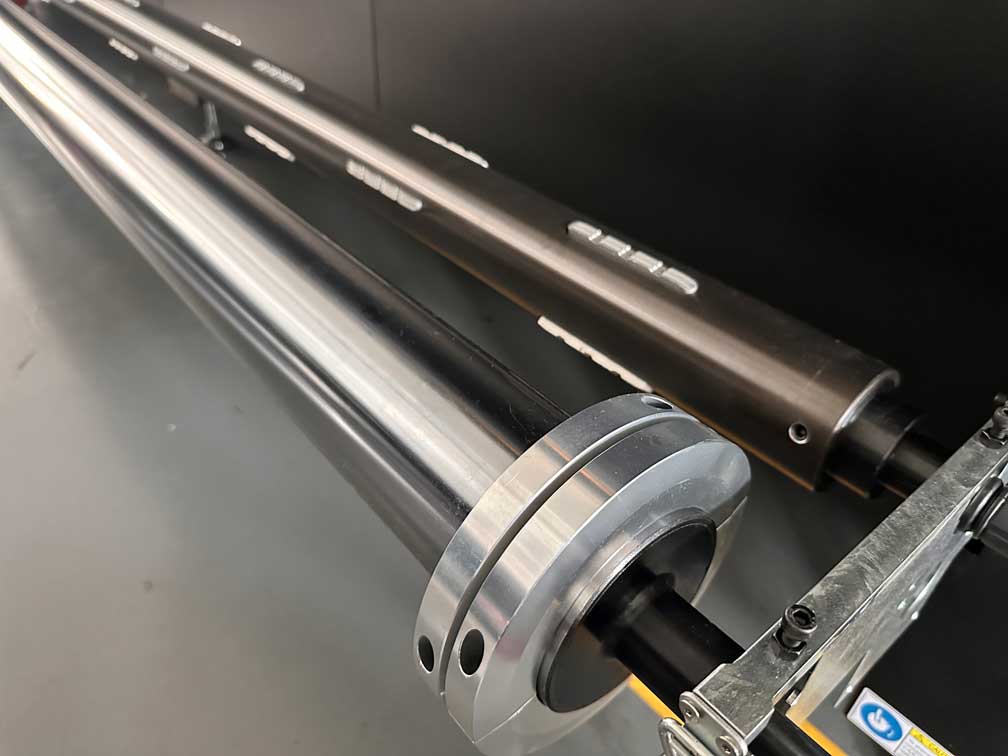

Air Inflation Shaft and Steel Roller Combination

It adapts to various materials with the air inflation shaft and steel roller combination, offers easy use, wide compatibility and high efficiency.

  • Winding with a single air inflation shaft, simple operation, flexible material change and increased efficiency
  • Feeding with the air inflation shaft + steel roller combination, heavy/high density materials such as hard sheets and thick roll materials can handle

Technical Specifications

Learn detailed technical specifications of FR3210, meet your professional needs


Printing Area 3200mm
Printing Resolution 726×2400 dpi
Printing Speed Ricoh Gen6(5PL):4Pass(4 Rows): 92~111m²/s
6Pass(4 Rows): 61~74m²/s
8Pass(4 Rows): 41~49m²/s
Konica 1024A(6PL):4Pass(4 Rows): 116~141m²/s
6Pass(4 Rows): 79~94m²/s
8Pass(4 Rows): 41~49m²/s
Kyocera(3.5PL):4Pass(2 Rows): 94m²/s
6Pass(2 Rows): 63m²/s
8Pass(2 Rows): 47m²/s
Printhead Configuration Ricoh Gen6(5PL), Konica 1024A (6PL), Kyocera(3.5PL)
Number of Printheads Ricoh Gen6(5PL):2~16pcs
Konica 1024A (6PL):4~28pcs
Kyocera(3.5PL):2~10pcs
Ink Colors CMYK+LC+LM+W
Curing Method UV LED Lamp
Image Format TIFF, JPEG, EPS, PDF
RIP Software SAI/ONYX/Caldera
Power Requirement AC220V 50/60HZ 15KW 70A
Environmental Conditions Temperature: 20℃~28℃ Humidity: 40%~60%
Ink Tank Capacity 5L
Device Dimensions 5950mm × 1700mm × 1600mm
Device Weight 2985kg
Outdoor Life 2 years (using DOCAN ink)

Request a Quote

Please fill out the form to receive a personalized price quote for the product you have viewed. Our sales team will get back to you as soon as possible.

Digital Printing Our Products

All Products
Wit-Color
Roll to Roll 1.9m Belt UV Epson i3200 2004UV
Ultra i3200 2003 UV
Wit-Color UV Mesh Belt Printer Ultra i3200 2004 EPSON   Print Width: 1.9 m Print Head: Epson i3200 Print Head Quantity: 3/4 pcs Inks: UV…
Discover
Docan
Hybrid UV Printing Machine
Docan UV FR3210
Versatile Options, Practical Printing With both roll and sheet UV printing feature, FR3210 can print on flexible materials such as advertising posters, flexible film, pearl…
Discover
Audley
DTF Printing Machine
Audley S2030
High Quality Printing Performance: The Audley S2030-X5 DTF printer features dual XP600 F1080A1 heads that enable fast and precise printing up to 30 cm. This…
Discover
Docan
Industrial Hybrid UV Printing Machine
Docan UV Pro W2525
Superior Hardware and Software Performance Realize industrial automation digital printing. Centrally adjust various production parameters with integrated control panel. Special print head configuration supports multiple…
Discover
Wit-Color

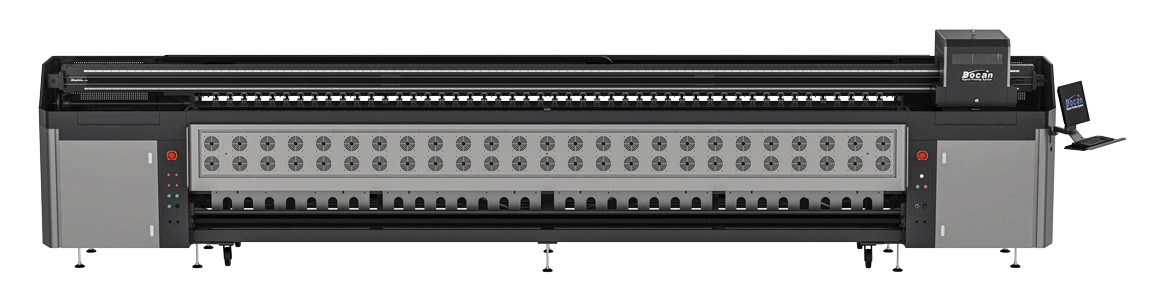

3.20m Solvent Printing Machine
