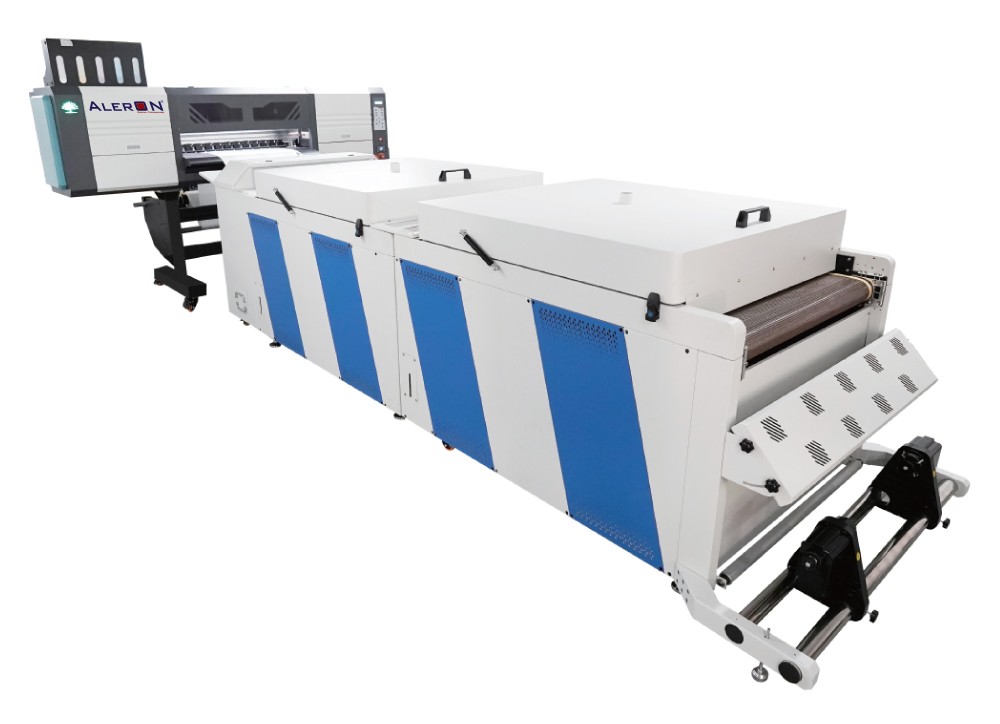

Aleron L808+D808
DTF Printing Machine 8 Heads Epson I3200-A1
Imported Silent Rail

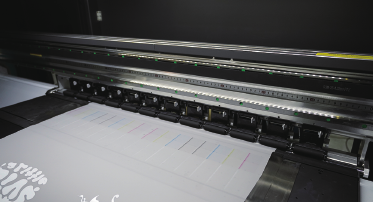

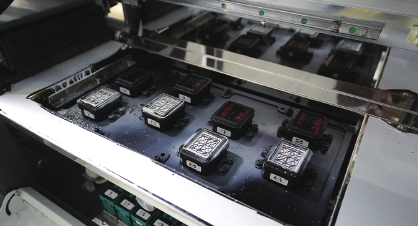

Epson Printheads

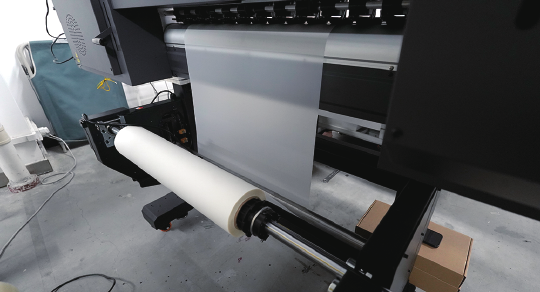

Automatic Feeding Device
Control Interface
| Model | L808 |
|---|---|
| Print Head | 8 Epson i3200-A1 |
| Print Speed | 4PASS: 52 m²/hour |
| Print Width | 31” (80CM) |
| Print Colors | CMYK + CMYK + CMYK + White + White + White + White |
| Media Type | DTF Pet Film |
| RIP Software | Standard: RIIN ; Optional: Maintop |
| Temperature / Humidity | 20℃-30℃ / 45%-65% RH |
| Power | 1.6KW |
| Power Supply / Voltage | 220V / 110V ; 7.2A / 14.5A ; 50HZ / 60HZ |
| Operating System | Windows 11 (64 bit) / Windows 10 (64 bit) |
| Machine Size | U2460 * W920 * H1810 mm |
| Package Size | U2910 * W1040 * H890 mm |
| Net Weight | 350Kg |
| Gross Weight | 400Kg |
Technical Parameters of the Powder Shaker Machine
| Model | D808 |
|---|---|
| Medium Width | 31” (80CM) |
| Heating and Drying Function | High-efficiency and powerful drying and hardening |
| Material Transfer Mode | Mesh belt conveyor, guide belt type |
| Winding Function | Automatic Induction Winding |
| Power | 10KW |
| Power Supply / Voltage | 220V / 380V ; 45A / 26A ; 50HZ |
| Machine Size | W4263 * W1255 * H1120 mm |
| Package Size | Front: W2080 * W1290 * H1250 mm; Rear: W1640 * W1290 * H1250 mm |
| Net Weight | 600Kg |
| Gross Weight | 650Kg |
