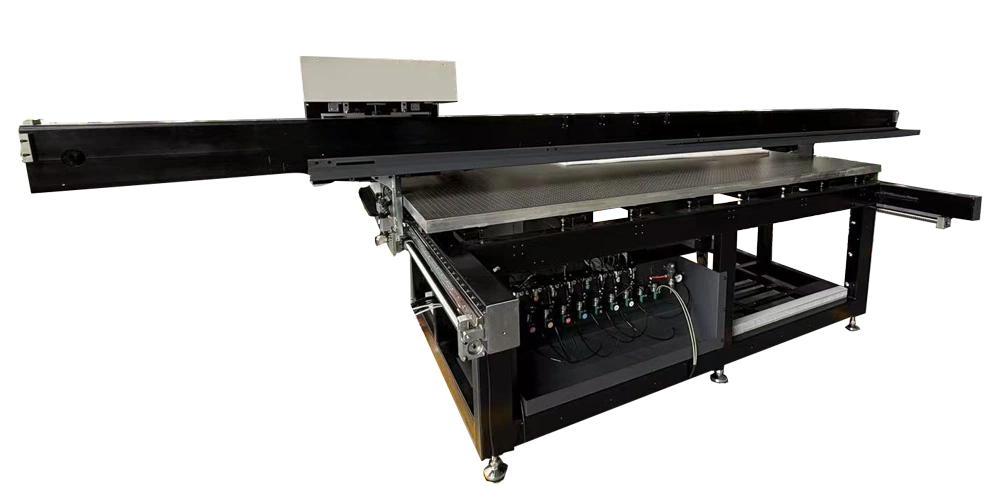

Docan UV H1000
Flatbed UV Digital Printing Machine Kyocera, Ricoh
A New Era in Flatbed Printing
H1000 offers high precision and quality direct printing solutions on materials such as glass, acrylic, wood, metal and plastic with its precision engineering and intelligent control system. Classic industrial UV flatbed printer, high precision, high speed and multi-material compatibility, offers unlimited possibilities for your creativity.
2.5*1.22m hard anodized vacuum table, suitable for most flat-surface materials on the market.
Printhead ArrangementRicoh printhead maximum 3 rows, Konica 2 rows, Epson 2 rows.
Y-axis Mechanical Drive SystemY-axis screw-driven system offers high precision and solid structure.
Key Technology Features
Discover the revolutionary technology of H1000, experience unique printing
Simple Structure | Solid Body | Economical
DOCAN H1000 flatbed printer has a fully steel hardened body, manufactured as a single piece, robust and durable.
- Compact printhead, printhead layout that meets standard printing needs
- Location pins on the table, improve precise alignment and print quality

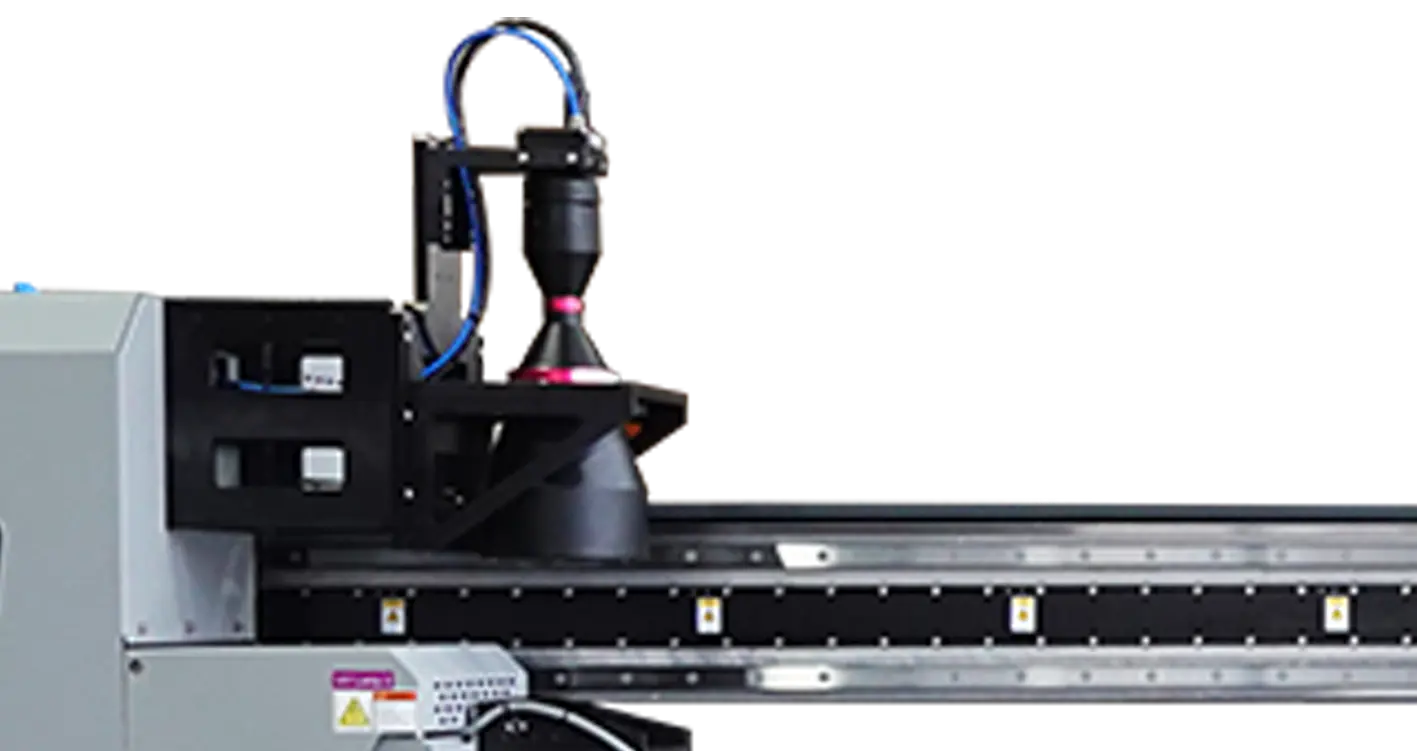

CCD Vision-Assisted Positioning System with AI Algorithm (Optional)
CCD vision-aided positioning system automatically detects the position of the printing material and performs printing, improving production efficiency and printing precision.
- High-efficiency automation, the system improves production efficiency with fully automatic detection
- Simple and understandable software interface, easy to use, time and labor saving
- Wide range of applications, suitable for sectors such as advertising, decoration materials, handicrafts

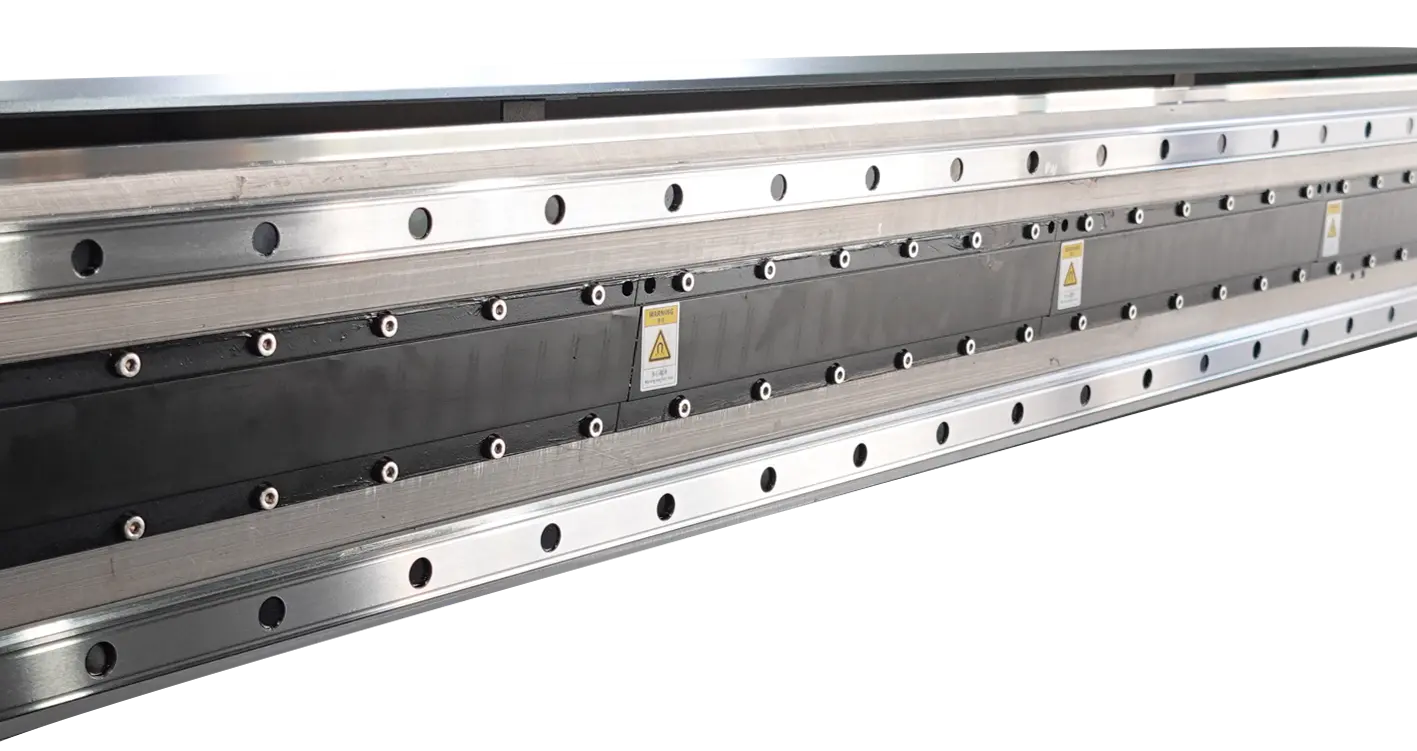

Precision Rail System
THK rails imported from Japan, X-axis linear motor, high-precision metal scale, ensures precise positioning and smooth operation in the printing process.
- THK rails imported from Japan, high precision, low noise, wear-resistant, long service life
- Carriage movement is provided by linear motor, high precision and stable motion control, guaranteed uninterrupted operation
- X-axis high-precision metal scale, ±0.01mm positioning accuracy, ensures precise alignment of images
Technical Specifications
Discover the detailed technical specifications of H1000, meet your professional needs.
| Print Area | 2500mm×1220mm |
| Print Height | Maximum 100mm |
| Print Resolution | Maximum 726×1440 dpi |
| Print Speed | Ricoh Gen6(5PL):4Pass(3 Rows):50~60m²/hour 6Pass(3 Rows): 36~42m²/hour 8Pass(3 Rows): 27~30m²/hour Konica 1024A(6PL): 4Pass(2 Rows): 33~40m²/hour 6Pass(2 Rows): 30~36m²/hour 8Pass(2 Rows): 24~28m²/hour Epson T3200: 4Pass(2 Rows): 48m²/hour 4Pass(2 Rows): 38m²/hour 4Pass(2 Rows): 28m²/hour |
| Printhead Configuration | Ricoh Gen6(5PL), Konica 1024A (6PL), Epson T3200 |
| Number of Printheads | Ricoh Gen6(5PL):2~12pcs Konica 1024A (6PL):4~12pcs Epson T3200:2~4pcs |
| Ink Colors | CMYK/LC/LM+B+V |
| Curing Method | UV LED Light |
| Image Format | TIFF, JPEG, EPS, PDF |
| RIP Software | SAI/ONYX/Caldera |
| Power Requirements | AC 220V 50/60HZ 10KW 45A |
| Environmental Requirements | Temperature: 20℃~28℃ Humidity: 40%~60% |
| Ink Tank Capacity | 2L |
| Device Dimensions | 4900mm × 2600mm × 1400mm |
| Equipment Weight | 1510kg |
Request a Quote
Please fill out the form to receive a personalized price quote for the product you have viewed. Our sales team will get back to you as soon as possible.
Digital Printing Our Products
All Products

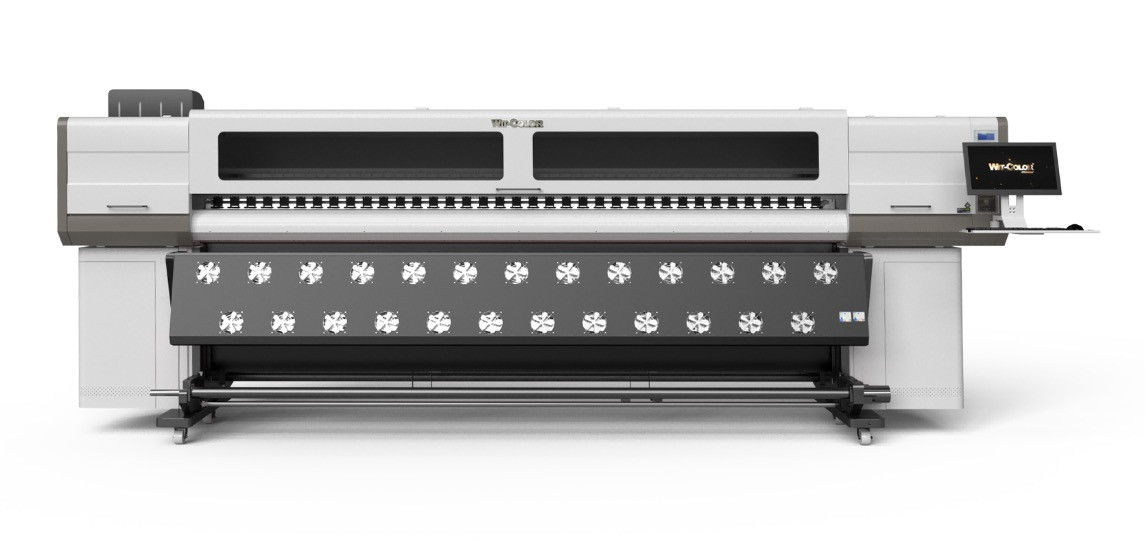

Ultra Star 5306
Wit-Color Ultra Star 5306 5.3-Meter Large Format Solvent Printer (Linear Motor)
5.3-meter solvent printer – designed for industrial-scale large-format printing applications.
Printheads: Equipped with StarFire…
Discover
Docan UV H1000
A New Era in Flatbed Printing
H1000 offers high precision and quality direct printing solutions on materials such as glass, acrylic, wood, metal and plastic…
Discover
CenturyStar CSP-2100
Larger print format for higher production efficiency
Precise heating system ensures constant temperature in the entire format
Magnetic raster provides more stable and precise, free…
Discover
Docan UV H3220
3.2 Meters Large Format Printing High Performance
H3220 large format flatbed printer offers flexible printing solutions with precision engineering and intelligent control system, provides superior…
Discover
Docan UV U3300
New Generation Industrial UV Roller Machine
New mechanical design, linear motorized carriage movement ensures continuous working stability, uninterrupted printing with industrial vacuum loop system.
…
Discover
Ultra Star 3306
Wit-Color Ultra Star 3306 Digital Solvent Printer (Linear Motor)
Over 10 hours of continuous operation – requires no special maintenance.
Delivers a printing speed of…
Discover

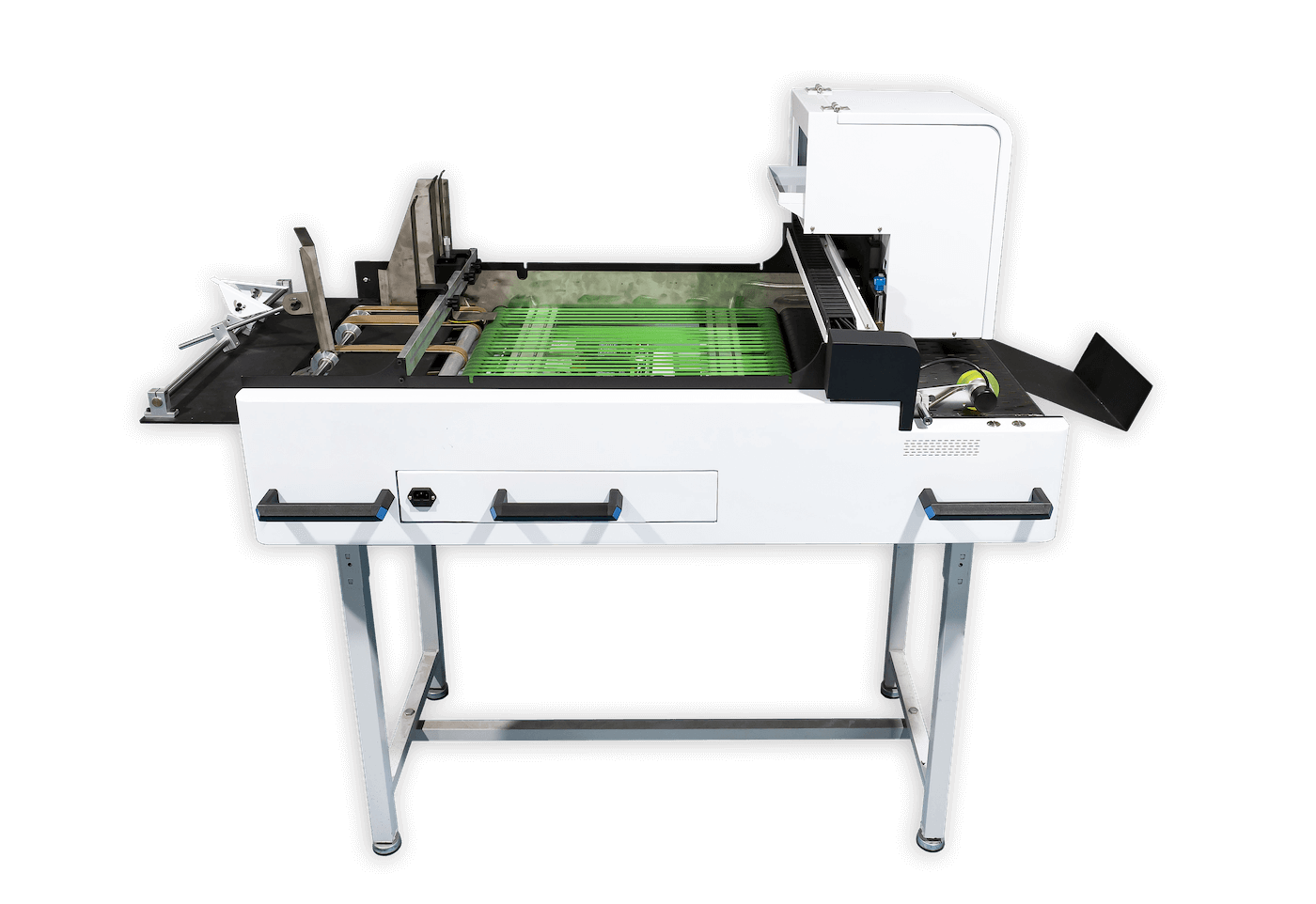

Caspijet CJ-T30
