Docan UV FR3200
Hybrid UV Printing Machine
Classic Model High Precision UV Roll Printer
3.2 meters printing width, perfect wide format, versatile application solutions, perfect printing effects such as Single Side Double Printing, embossed texture, offers unlimited possibilities for your creativity.
FR3200, classic model, perfect wide format, provides stable output of flexible film, banner cloth, vehicle wrap, high permeable film, reflective film, stable production performance, relieves your worries.
3.2 Meter Printing Width
Classic printing width, easily copes with various materials, more convenient.
Print Head ArrangementRicoh print head up to 4 rows, Konica 3 rows.
Material Feeding and Collection ControlMaterial feeding with rear air shaft + steel roller combination, front air shaft material collection.
Key Technology Features
Discover the revolutionary technology of FR3200, experience unique printing.
Affordable Production Solution
Solves equipment budget problems of small and medium-sized enterprises, industrial production performance, economical investment.
- Supports up to 4 rows with Ricoh printhead, 3 rows with Konica, meets daily production needs
- Modular structure design, core components use durable solutions tested by the market
- Supports multiple materials such as wood, metal, leather, reduces customers' equipment investment
Standard Width, Multi-Material Support
With its 3.2-meter standard printing width, it provides stable output on materials such as flexible film, tape, vehicle wrap, high-transmittance film and reflective film.
- With its 3.2-meter standard printing width, it is compatible with most materials on the market
- With its 1-30mm material height support, stable production on various media
Dual-Layer Single-Side, Versatile Applications
Offers flexible solutions with standard and multi-color combination modes.
- Dual-Layer Single-Side printing technology provides dark tone details and smooth transitions, increases color performance
- Multiple printing mode options such as Full Color, Color-White-Color, Color-White-Black-Color
- Compatibility with standard boards in the market, different materials and thicknesses
Technical Specifications
Discover detailed technical specifications of FR3200, meet your professional needs
Basic Features
| Print Area | 3200mm |
| Print Height | Maximum 30mm |
| Print Resolution | 726×2400dpi |
| Print Speed | Konica 1024A (6PL):4Pass(3 Rows):75~85m²/s 6Pass(3 Rows): 54~63m²/s 8Pass(3 Rows): 42~48m²/s Ricoh Gen6(5PL):4Pass(4 Rows):72~80m²/s 6Pass(4 Rows):56~60m²/s 8Pass(4 Rows): 36~40m²/s Kyocera(3.5PL)::4Pass(1 Row): 38m²/s 6Pass(1 Row): 26m²/s 8Pass(1 Row): 18m²/s |
| Printhead Configuration | Ricoh Gen6(5PL) , Konica 1024A (6PL) , Kyocera(3.5PL) |
| Number of Printheads | Ricoh Gen6(5PL):2~16pcs Konica 1024A (6PL):4~18pcs Kyocera(3.5PL):2~6pcs |
| Ink Colors | CMYK/LC/LM+W |
| Curing Method | UV LED Light |
| Image Format | TIFF, JPEG, EPS, PDF |
| RIP Software | SAI/ONYX/Caldera |
| Power Requirements | AC220V 50/60HZ 10KW 45A |
| Environmental Requirements | Temperature: 20℃~28℃ Humidity: 40%~60% |
| Ink Tank Capacity | 2L |
| Device Dimensions | 5611mm × 1560mm×1570mm |
| Equipment Weight | 1960kg |
Request a Quote
Please fill out the form to receive a personalized price quote for the product you have viewed. Our sales team will get back to you as soon as possible.
Digital Printing Our Products
All Products
Docan UV FR2006
Discover New Productivity
2.05 meter print width, ideal solution for compact and high precision Color-White-Color production.
FR2006, new roll UV printer, offers precise and efficient…
Discover
Docan UV Eco U5300
5.2 Meter Super Wide UV Roller Machine
U5300 provides high precision, high quality direct printing with precision engineering and intelligent control system using the latest…
Discover

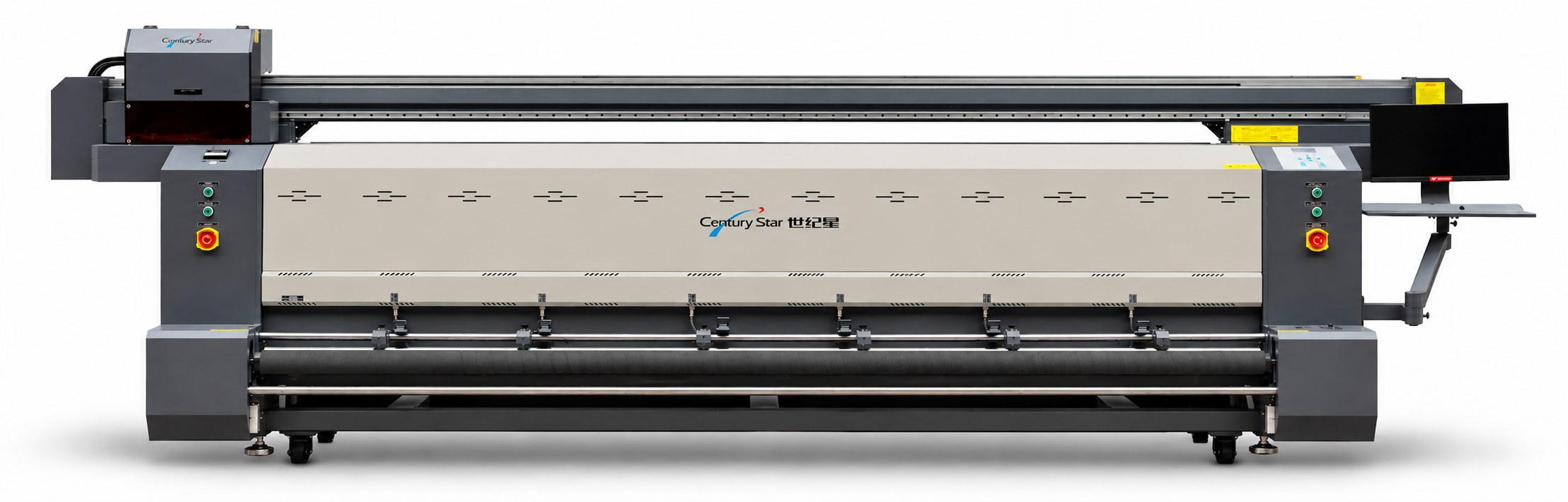

CenturyStar CSP-3200
