Yaselan Binary Star DS-3200T
Double Sided Textile Printing Machine
Different Printhead Combination Modes
C M Y K / C M Y K LC LM / C M Y K LC LM O B (FM FY)
Supports 8 spot color special solutions
Machine Features
- Uses double-sided Epson Printhead (i3200-A1). Supports high-speed printing.
- Image size parameters can be freely adjusted according to design requirements. Various special application solutions such as the same image in the same color, the same image in different colors, and different images in different colors can be achieved.
- Automatic moisturizing ink cleaning system, X-Y-Z axis synchronous driving system. Automatic ink cleaning system can effectively eliminate the ink splashes during printing.
- Two print heads print simultaneously and automatically adjust the distance between the print media. Supports soft roll printing material up to 3mm.
| Technical Parameters | |
|---|---|
| Printer Model | DS-3200T |
| Print Head | Epson i3200-A1 (8H) |
| Print Speed | High Resolution Mode: 4 passes - 75 m²/hour Production Mode: 3 passes - 95 m²/hour Draft Mode: 2 passes - 115 m²/hour |
| Ink Type | Special: Acid ink, Acidic ink, Disperse direct printing ink |
| Color | M / Y / C / K / LM / LC (O, B optional, FM, FY) |
| Media Feeding Diameter | 350 mm |
| Printing Width | 3150 mm |
| Printing Thickness | ≤ 3 mm |
| RIP Software | MainTop / PrintFactory / neoStampa |
| Image Format | TIFF / JPG / EPS / PDF |
| Data Transfer | TCP/IP Network Interface / USB |
| Operating System | Windows 7/10 64 bit (Flagship/Professional Version) |
| Computer Configuration | SSD Disk: SATA100G Motherboard: INTEL RAM: 8G~16G |
| Drying System | Synchronous drying system; pre- and post-printing temperature can be adjusted |
| Ink Cleaning System | Automatic nozzle cleaning, XY axis synchronous driving and dampening system |
| Media Type | Chemical fiber, canvas cloth, light box cloth, etc. |
| Maximum Power | 11KW (including heating system power 9KW) |
| Working Environment | Humidity: 40%~70% | Temperature: 20~30°C |
| Power Supply | AC220V ±10% 50Hz |
| Net Weight | 3000 kg |
| Machine Size | L*W*H: 5695*1568*2170 mm |
| Package Size | L*W*H: 5800*1800*2500 mm |
Request a Quote
Please fill out the form to receive a personalized price quote for the product you have viewed. Our sales team will get back to you as soon as possible.
Digital Printing Our Products
All Products
Ultra i3200 3302/4
Wit-Color Eco-Solvent Latest Multicolor Digital Label Press Ultra i3200 3302/4 (Standard)
Print Width: 3.3m
Print Head: Epson i3200
Print Head Quantity: 2-4 pcs
Inks: Eco-solvent…
Discover
Docan UV Eco U5300
5.2 Meter Super Wide UV Roller Machine
U5300 provides high precision, high quality direct printing with precision engineering and intelligent control system using the latest…
Discover

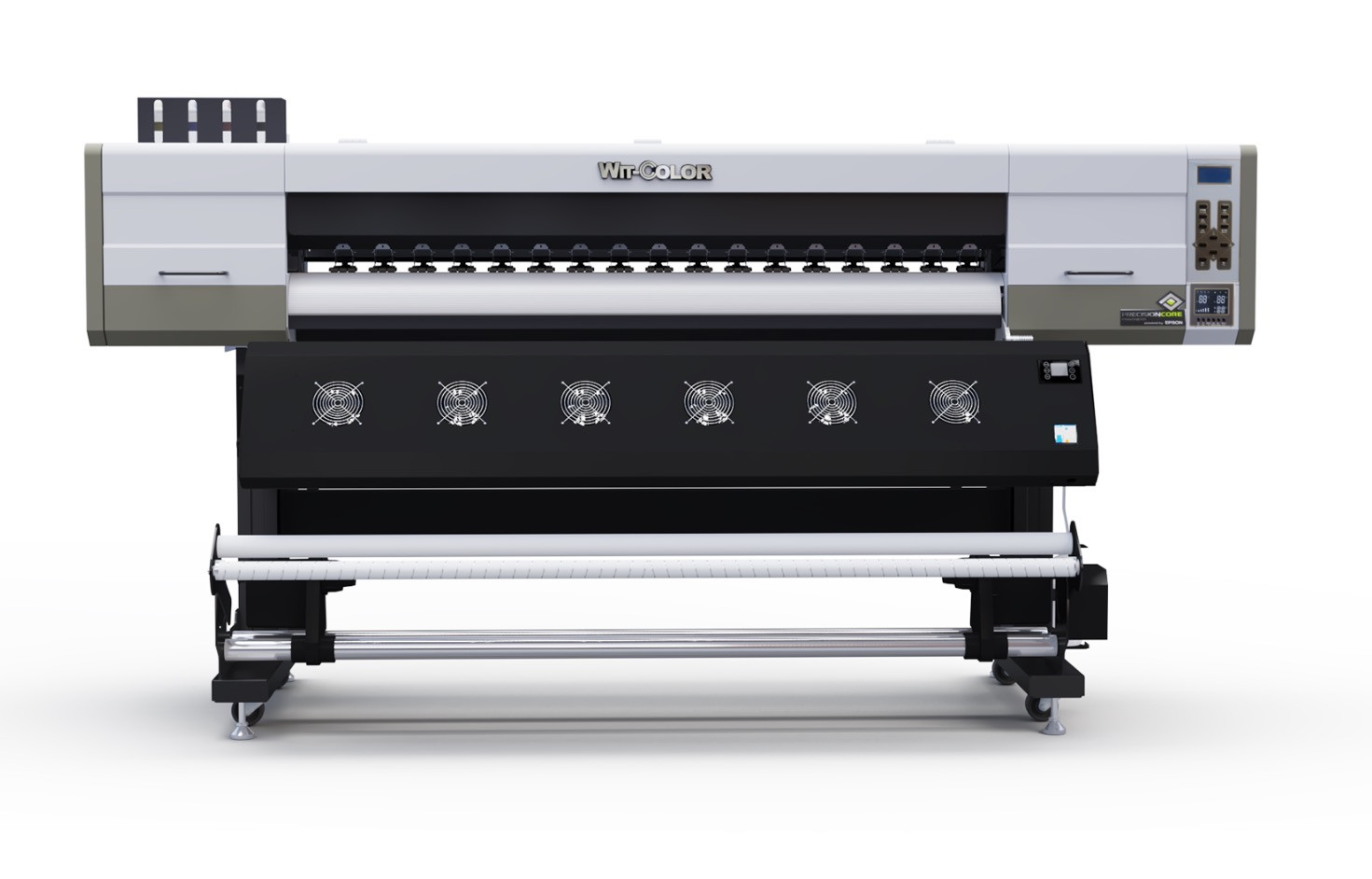

Ultra i3200 1702
Wit-Color Ultra Ultra i3200 1702 TP 1.6m Transfer Paper Printer with i3200 Printheads
Print Width: 1.6m
Printhead: Epson i3200
Printhead Quantity: 2pcs
Inks: sublimation
RIP…
Discover
Docan UV FR2010
Unlimited Possibilities with High Precision and Quality
FR2010 offers superior performance on both plate and roll materials, can print high resolution up to 726*2400dpi, images…
Discover
Docan UV R5200
Focus on Large Format, Mature Printing Technology
R5200 inherits DOCAN's high-quality production technology. It features a fully welded body structure, providing superior rigidity and stability…
Discover
Caspijet CJ-T1
Print Head: HP841
Print Speed: 20-40m/min
Print Width: 13cm/21cm/30cm
Color: CMYK
Ink Type:Water Based Pigment/Dye Ink
Discover
Docan UV FR2006
Discover New Productivity
2.05 meter print width, ideal solution for compact and high precision Color-White-Color production.
FR2006, new roll UV printer, offers precise and efficient…
Discover
Caspijet CJ-T800
Print Head:HP A3/A4
Print Speed: 20-40m/min
Feeding Width: 800mm
Print Height: 200mm (Customization Support)
Print Width: 300mm/600mm
Color: CMYK
Ink Type: Pigment Ink
Discover

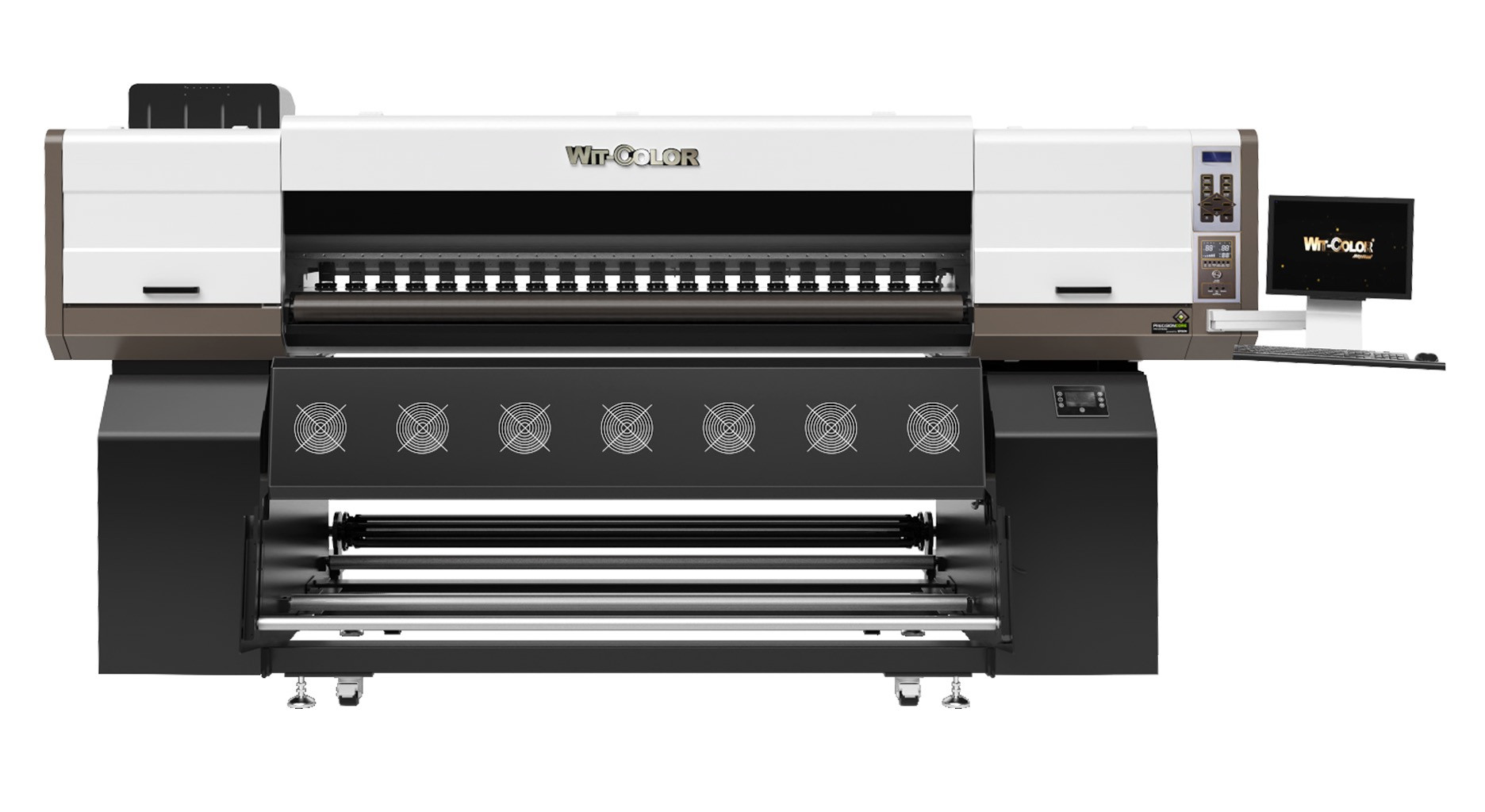

Ultra i3200 1908TP
