Docan UV H3220
Industrial UV Flatbed Printer
3.2 Meters Large Format Printing High Performance
H3220 large format flatbed printer offers flexible printing solutions with precision engineering and intelligent control system, provides superior printing solutions for various industries.
Super high resolution digital UV flatbed printer, perfect for advertising, crafts and other industrial applications, such as acrylic products, trade show boards, photo quality printing and other special products.

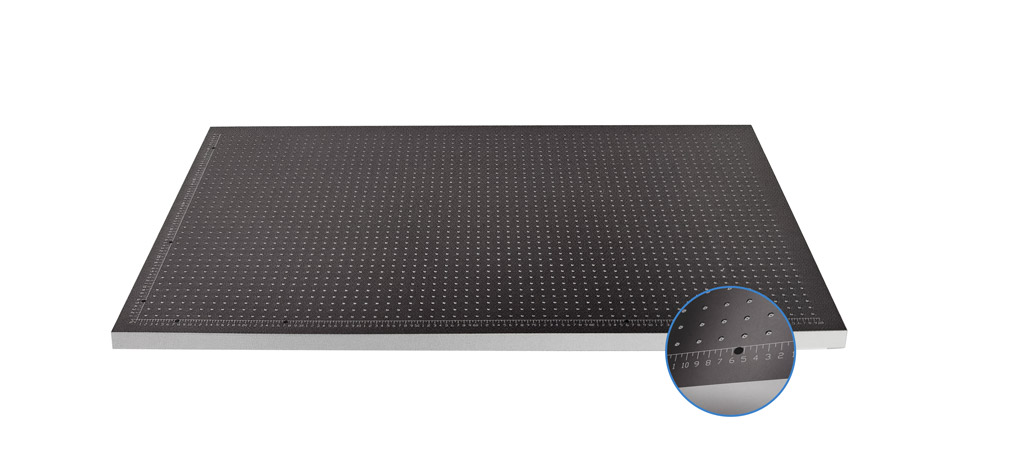

3.2*2m hard anodized suction platform, large format, more material printing options.
Print Head ArrangementRicoh print head maximum 3 rows, Konica 2 rows.
Y-axis Mechanical Drive SystemY-axis screw drive, high precision, strong rigidity.
Key Technology Features
Discover the revolutionary technology of H3220, experience unique printing.
Modular Design Economical Production Tool
Solves the equipment budget problems of small and medium-sized enterprises, industrial production performance, economical investment.
- Modular structure design, core components use market-tested durable solutions
- Supports multiple materials such as wood, metal, leather, reduce customers' equipment investment
Industry Standard Large Format Multi-Material Printing
3.2*2 meters of material printing capacity at a time, support some special large parts, large and stable.
- 3.2*2m hard anodized table, for large-size industrial production
- Standard positioning pins, mechanical hard stop and double lock with vacuum suction
Y-axis Precision Drive Dual Motor
Y-axis dual servo motor, for areas requiring speed, precision and reliability.
- Dual servo motor provides greater thrust and stability, solves precision and stability problems under high speed and load
- Y-axis screw drive, high precision position feedback, ensures printing accuracy
Technical Specifications
Learn the detailed technical specifications of H3220, meet your professional needs.
| Print Area | 3200mm×2000mm |
| Print Height | Maximum 100mm |
| Print Resolution | Maximum 604×2400dpi |
| Print Speed | Konica 1024A (6PL):4Pass(2 Rows): 44~52m²/hour 6Pass(2 Rows): 36~42m²/hour 8Pass(2 Rows): 28~35m²/hour Ricoh Gen6 (5PL):4Pass(3 Rows): 54~60m²/hour 6Pass(3 Rows): 36~45m²/hour 8Pass(3 Rows): 27~32m²/hour Kyocera（3.5L):4Pass(1 Row):30m²/hour 6Pass(1 Row): 20m²/hour 8Pass(1 Row): 17m²/hour |
| Printhead Configuration | Konica 1024A (6PL) , Ricoh Gen6 (5PL) , Kyocera（3.5L) |
| Number of Printheads | Konica 1024A (6PL):4~12pcs Ricoh Gen6 (5PL):2~9pcs Kyocera(3.5L):2~6pcs |
| Ink Colors | CMYK/LC/LM+W+V |
| Curing Method | UV LED Light |
| Image Format | TIFF, JPEG, EPS, PDF |
| RIP Software | SAI/ONYX/Caldera |
| Power Requirements | AC 220V 50/60HZ 10KW 45A |
| Environmental Requirements | Temperature: 20℃~28℃ Humidity: 40%~60% |
| Ink Tank Capacity | 2L |
| Device Dimensions | 5200mm × 2900mm × 1600mm |
| Equipment Weight | 2180kg |
Request a Quote
Please fill out the form to receive a personalized price quote for the product you have viewed. Our sales team will get back to you as soon as possible.
