Docan UV FR2010
Industrial Hybrid UV Printing Machine
Unlimited Possibilities with High Precision and Quality
FR2010 offers superior performance on both plate and roll materials, can print high resolution up to 726*2400dpi, images have fine details, ideal for small and medium orders with 2.1 meters printing width.
Superior details, high quality industrial UV conveyor printer, suitable for flat and roll materials, used in applications such as light boxes, window films, vehicle wraps, wallpapers.
Equipped with 2m roll loading platform (2.1*0.9), offers dual use for plate and roll materials, is a versatile machine.
Print Head ArrangementRicoh print heads maximum 3 rows, Konica 2 rows, Kyocera 1 order.
Winding/Winding Control SystemFront and rear single air shaft winding/winding system is used for unwinding and winding of roll materials, provides easy and fast material change, suitable for light and medium weight material rolls.
Key Technology Features
Discover the revolutionary technology of FR2010, experience unique printing

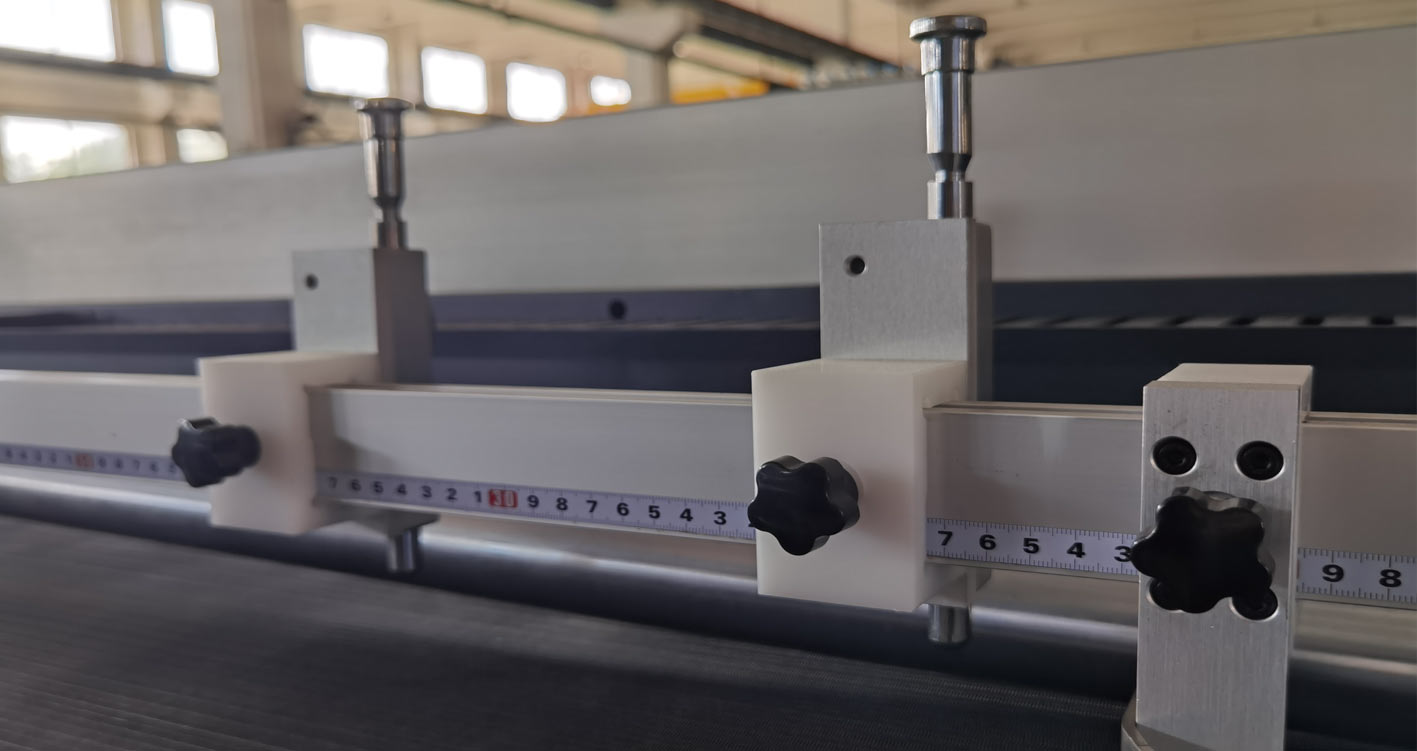

Precise Positioning, Prevents Material Slippage
Equipped with standard positioning rods, ensures the accuracy of the printing start position.
- With the mechanical limiter design, the plate fixes the starting position of the material during printing
- No need for complicated alignment systems or manual recalibration, just place the material on the positioning rod, and the operations simplifies

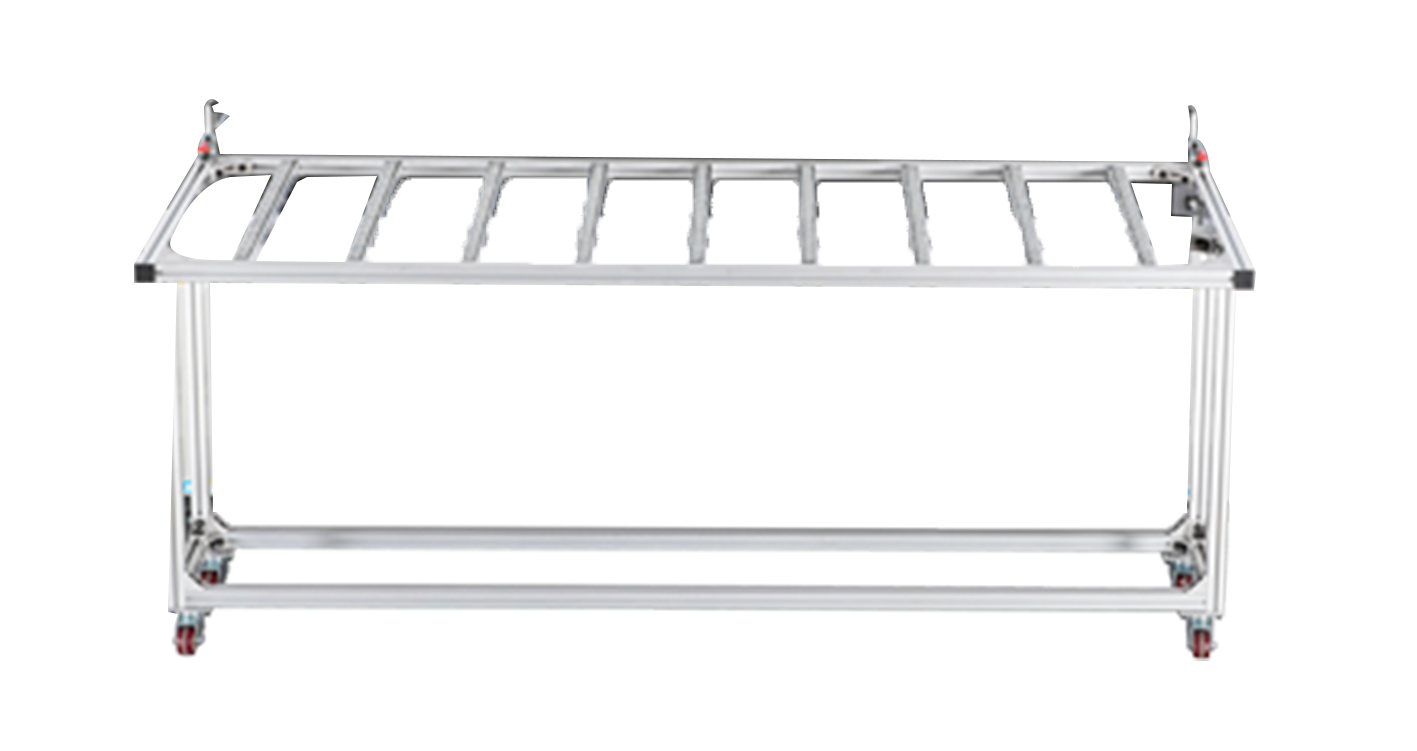

Support for sheet material with standard roll table
Equipped with 2m roll loading platform, it offers dual use for sheet and roll materials, it is a versatile machine.
- Superior performance on both sheet and roll materials with standard 2m roll table
- 2.1 meter printing width, easy material loading/unloading by one person
- Direct printing, material saving with full roll printing
Versatile application solutions
Offers flexible solutions with standard and multi-color combination modes.
- Single row color, single row color+white, single row color-white-color, three row color-white-color options
- Standard boards in the market, for different materials and thicknesses compatibility
Technical Specifications
Discover the detailed technical specifications of FR2010, meet your professional needs.
| Print Area | 2100mm |
| Print Height | Maximum 35mm |
| Print Resolution | Maximum 726×2400dpi |
| Print Speed | Kyocera(3.5PL): 4Pass(1 Row):20~28m²/s 6Pass(1 Row): 20~24m²/s 8Pass(1 Row): 15~18m²/s Konica 1024A(6PL): 4Pass(2 Row):45~50m²/s 6Pass(2 Row): 33~39m²/s 8Pass(2 Row): 21~26m²/s Ricoh Gen6(5PL):4Pass(3 Row): 54~60m²/s 6Pass(3 Row): 36~47m²/s 8Pass(3 Row): 26~31m²/s |
| Printhead Configuration | Konica 1024A (6PL), Kyocera(3.5PL), Ricoh Gen6(5PL) |
| Number of Printheads | Ricoh Gen6(5PL):2~9pcs Konica 1024A (6PL):4~10pcs Kyocera(3.5PL):2~6pcs |
| Ink Colors | CMYK/LC/LM+W |
| Curing Method | UV LED Light |
| Image Format | TIFF, JPEG, EPS, PDF |
| RIP Software | SAI/ONYX/Caldera |
| Power Requirements | AC220V 50/60HZ 10KW 45A |
| Environmental Requirements | Temperature: 20℃~28℃ Humidity: 40%~60% |
| Ink Tank Capacity | 2L |
| Device Dimensions | 4450mm×1400mm×1500mm |
| Equipment Weight | 1310kg |
