Docan UV H2525
Flatbed UV Digital Printing Machine
High-Efficiency UV Flatbed Printing Solution
H2525 improves production efficiency with 2.5m*2.5m printing size, innovative A/B surface cyclic printing technology and super-fast printing. It offers easy operation thanks to its smart control system, meets the fast and detailed printing needs of large surface materials such as panels, wall coverings, glass.
2.5*2.5m Printing Width
2.5*2.5m hard anodized vacuum table, suitable for most flat surface materials.
Print Head Arrangement
Ricoh print head maximum 4 rows, Konica 4 rows, Epson 4 rows.
Y-Axis Electromagnetic Drive System
Y-axis works with magnetic levitation motor, does not require mechanical transmission parts, offers high precision and stability.
Innovative Double-Surfaced Cyclic Printing Technology (Uninterrupted Printing Support)
DOCAN offers uninterrupted automatic printing and high production capacity with its innovative double-surfaced cyclic printing technology.
- Y-axis provides high precision and speed with double linear motor
- Local suction with independent vacuum controlled table
- Simple software interface, ease of use with central settings

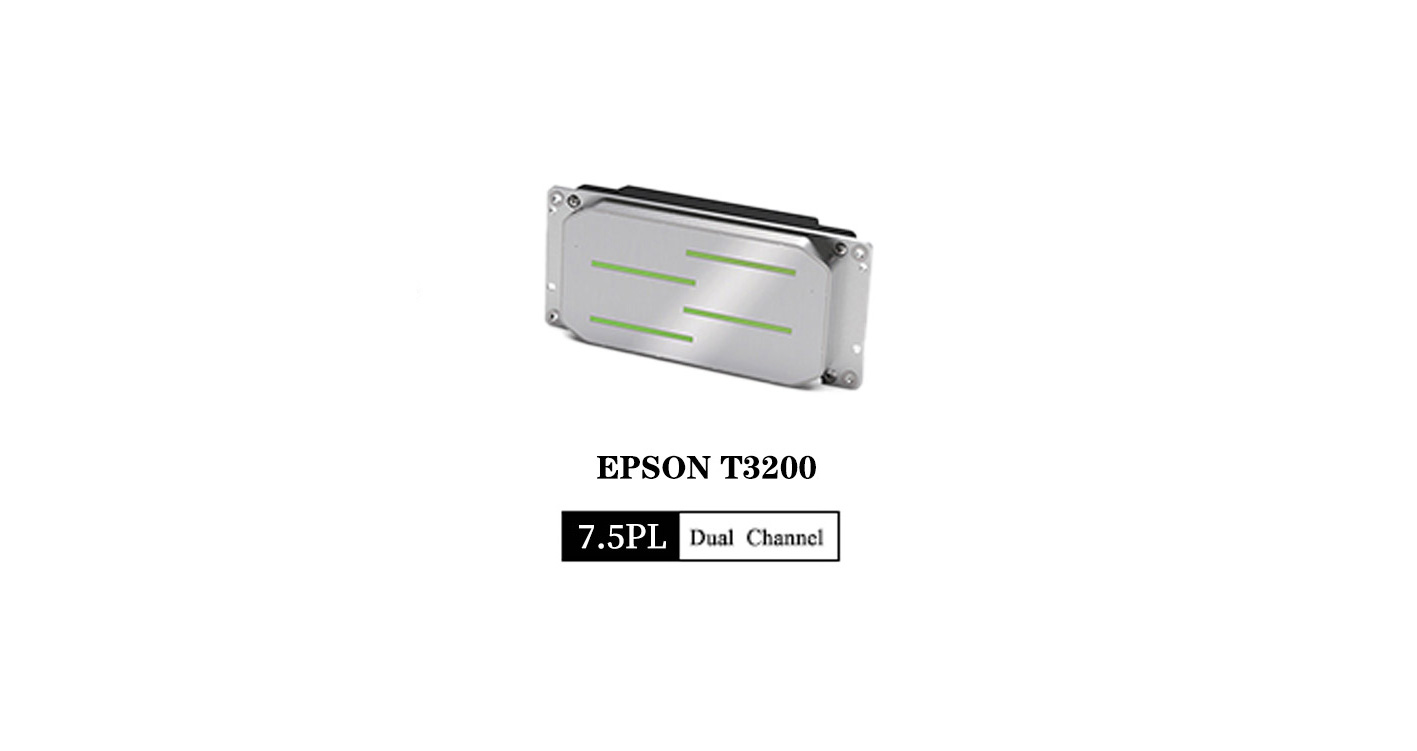

High Speed and Stability - Max. 4 Row Epson T3200 Support
Extended print head, max. 4 row Epson T3200 print head support, offers high speed and capacity.
- Max. 4 row Epson T3200 print head, CMYK+B printing support
- High capacity, 2 pieces of 2.44m*1.22m standard board printing at the same time
Equipped with Security Features
H2525 increases security, operational efficiency and print quality with electronic light curtain, printhead crash protection and automatic ink run-out warning.

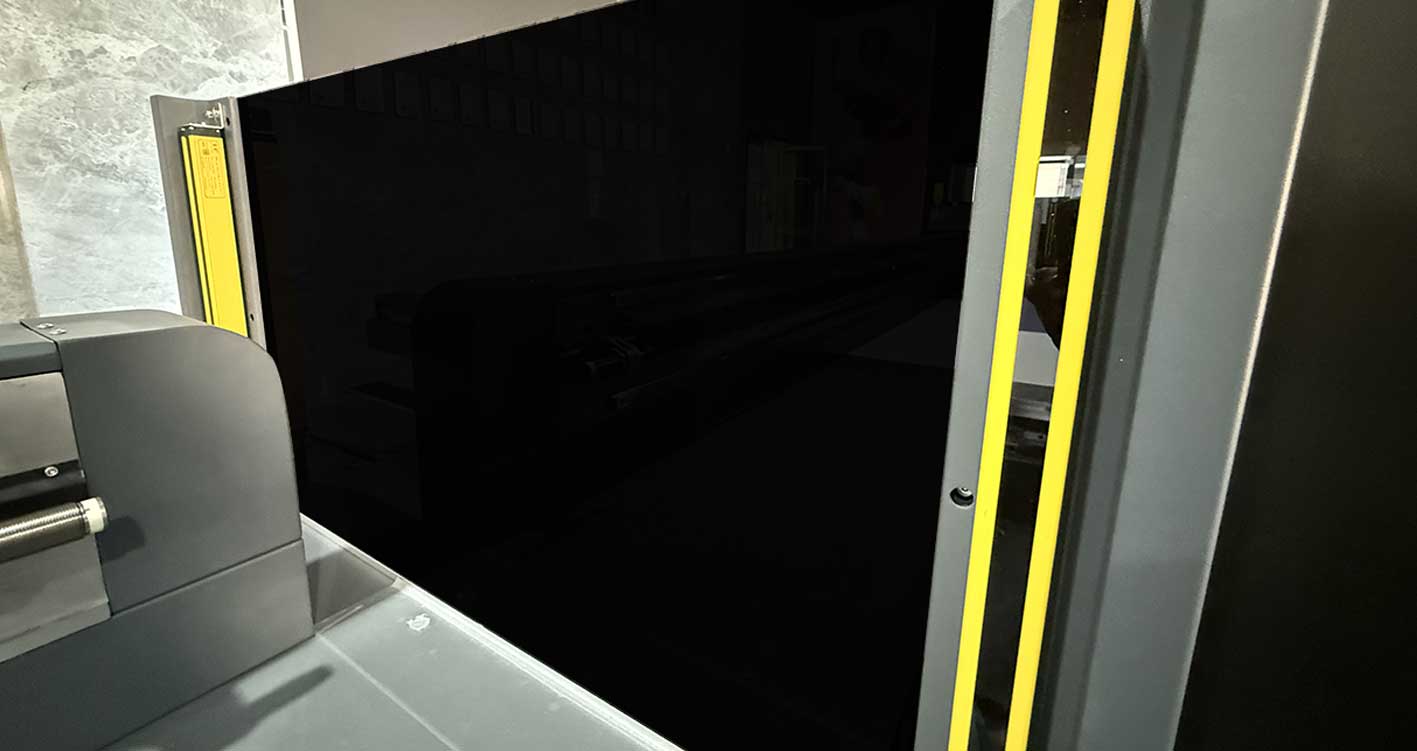

- Emergency stop in seconds with electronic light curtain, safe production
- Prevents damage to sensitive parts with printhead crash protection mechanism
- Uninterrupted printing and printhead protection with automatic ink run-out warning
Technical Specifications
Discover the detailed technical specifications of W2525, meet your professional needs.
| Printing Area | 2500mm×2500mm |
| Printing Height | Maximum 100mm |
| Printing Resolution | Maximum 1440×1440 dpi |
| Printing Speed | Konica 1024A (6PL) :4Pass(4 Rows): 112~120m²/hour 6Pass(4 Rows): 74~90m²/hour 8Pass(4 Rows): 50~60m²/hour Ricoh Gen6 (5PL) :4Pass(4 Rows): 60~68m²/hour 6Pass(4 Rows): 48~55m²/hour 8Pass(4 Rows): 36~42m²/hour Epson T3200：4Pass(4 Rows): 99~112m²/hour 6Pass(4 Rows): 70~80m²/hour 8Pass(4 Rows): 56~67m²/hour |
| Print Head Configuration | Konica 1024A (6PL), Ricoh Gen6 (5PL), Epson T3200 |
| Number of Printheads | Konica 1024A (6PL)：4~32pcs Ricoh Gen6 (5PL)：2~16pcs Epson T3200：2~8pcs |
| Ink Colors | CMYK/LC/LM+B+V |
| Curing Method | UV LED Light |
| Image Format | TIFF, JPEG, EPS, PDF |
| RIP Software | SAI/ONYX/Caldera |
| Power Requirement | AC 380V 50/60HZ 25KW 38A |
| Environmental Requirements | Temperature: 20℃~28℃ Humidity: 40%~60% |
| Ink Tank Capacity | 2L |
| Equipment Dimensions | 5300mm × 4400mm × 1400mm |
| Equipment Weight | 2155kg |
