Docan UV S5300
High Precision Solvent Printing Machine
5.3 Meter Super Wide Format Printer
The S5300 efficiently meets the needs of large areas with its 5.3m printing width, reducing the need for splicing and improving print quality. Designed for large format advertising, industrial printing and special scenario needs.
5.3 meters high precision, high production capacity, high durability solvent printer, one-piece body design is robust and durable, ideal for various applications such as indoor/outdoor billboards, banners.
5.3m wide, one-piece printing area, professional visual effect
Print Head ArrangementKonica print head maximum 3 rows, Fujifilm SG-1024A3 3 rows
Infrared Drying SystemInfrared high speed drying system increases production efficiency and print quality
Key Technology Features
Discover the revolutionary technology of S5300, a unique printing experience

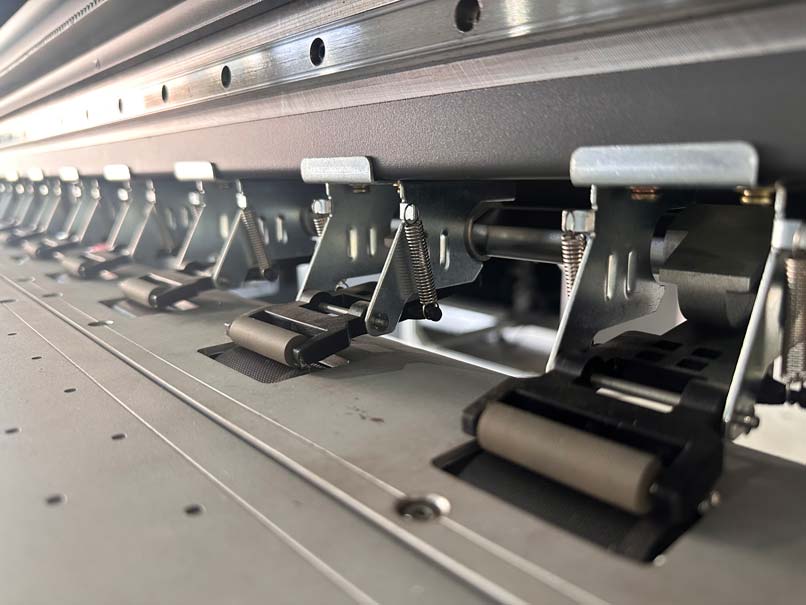

Flattening Material with Cylinder Design
The cylinder design, which ensures that the material is crushed and flattened properly, prevents the material from wrinkling or slipping.
- Improves print quality by using small cylinders to flatten wide format materials
- Stabilizes the material during printing, prevents wrinkling and prevents material slipping
Infrared Drying System
Infrared rays dry and harden the ink rapidly, drying in seconds, increasing production efficiency and print quality.
- Adjust the drying intensity in different zones with the multi-zone infrared temperature control module
- Water-based inks quickly form a film when in contact with infrared light, preventing scattering
- Provides even drying on the entire surface, eliminating the edge curling caused by traditional hot air drying

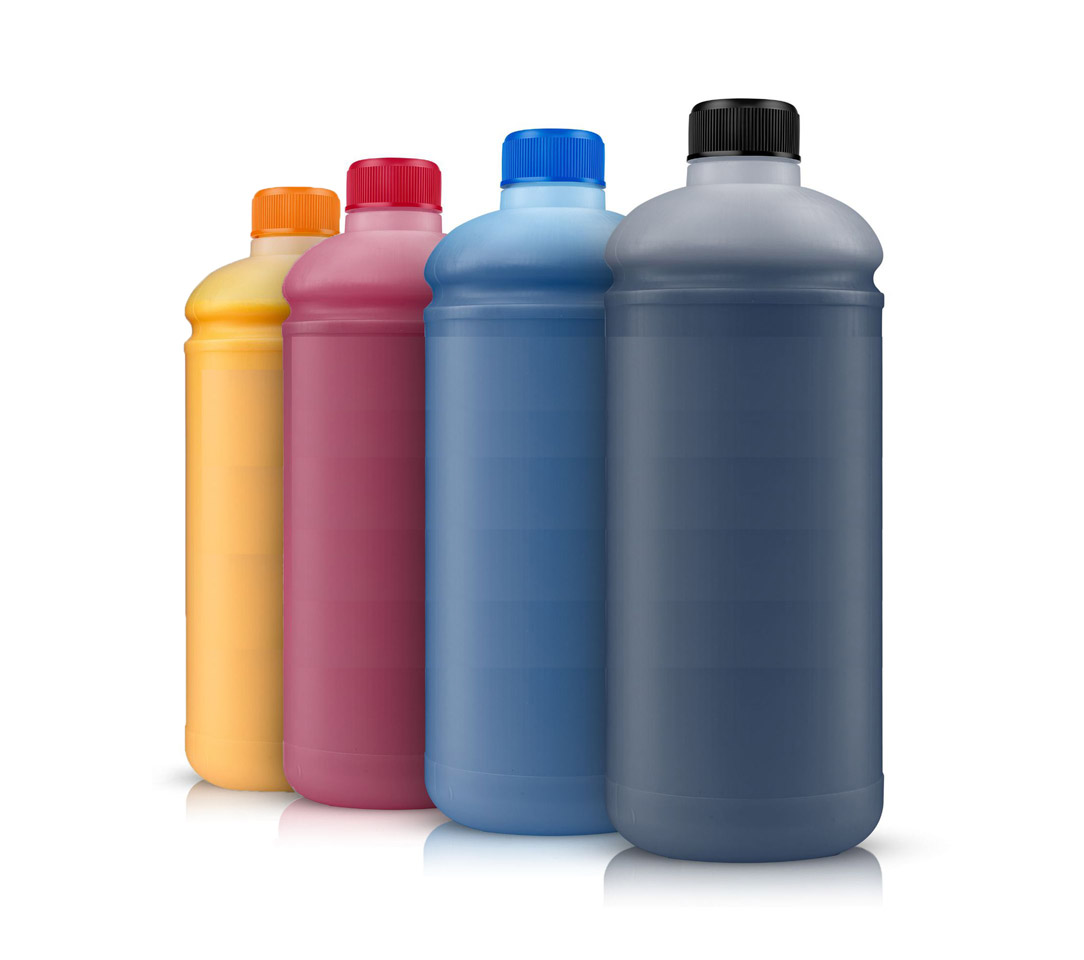

Solvent Ink
Increases production efficiency by using solvent ink.
- High level of sun resistance, fade resistance, not affected by environmental factors
- Wide color gamut, offers vivid and saturated colors, meets different printing needs
Technical Specifications
Learn the detailed technical parameters of S5300, meet your professional needs.
| Printing Area | 5300mm |
| Printing Height | Maximum 10mm |
| Printing Resolution | 540×720dpi, 540×1080dpi, 540×1440dpi |
| Printing Speed | Konica 1024i（30PL）:High Quality(3 Rows): 276sqm/h High Speed(3 Rows): 345sqm/h Production(3 Rows): 156sqm/h |
| Printhead Configuration | Konica 1024i（30PL） |
| Number of Printheads | 4~12pcs |
| Ink Colors | CMYK |
| Curing Method | Infrared radiation drying system (local heating: 1.7/3.4/5.3m) |
| Image Format | TIFF, JPEG, EPS, PDF |
| RIP Software | SAI/ONYX/Caldera |
| Power Requirements | Machine：AC220V 10A Infrared Heating: AC380V 27A |
| Environmental Requirements | Temperature 20℃~28℃ Humidity 40%~60% |
| Ink Tank Capacity | 5L |
| Device Dimensions | 8150mm × 1680mm × 1800mm |
| Equipment Weight | 3000kg |
Request a Quote
Please fill out the form to receive a personalized price quote for the product you have viewed. Our sales team will get back to you as soon as possible.
Digital Printing Our Products
All Products
Ultra Star 3306
Wit-Color Ultra Star 3306 Digital Solvent Printer (Linear Motor)
Over 10 hours of continuous operation – requires no special maintenance.
Delivers a printing speed of…
Discover
Docan UV H1000
A New Era in Flatbed Printing
H1000 offers high precision and quality direct printing solutions on materials such as glass, acrylic, wood, metal and plastic…
Discover

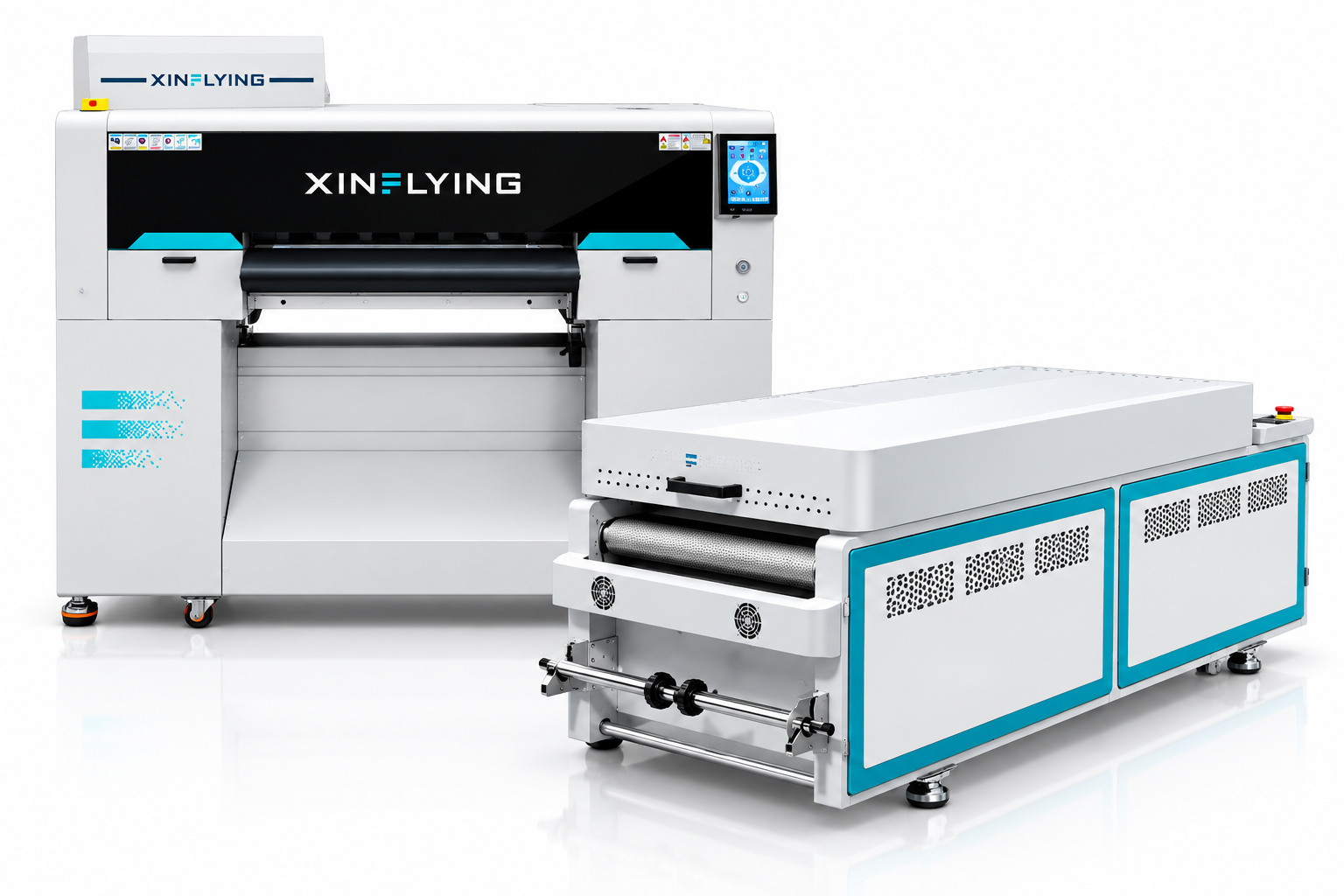

XinFlying F606
