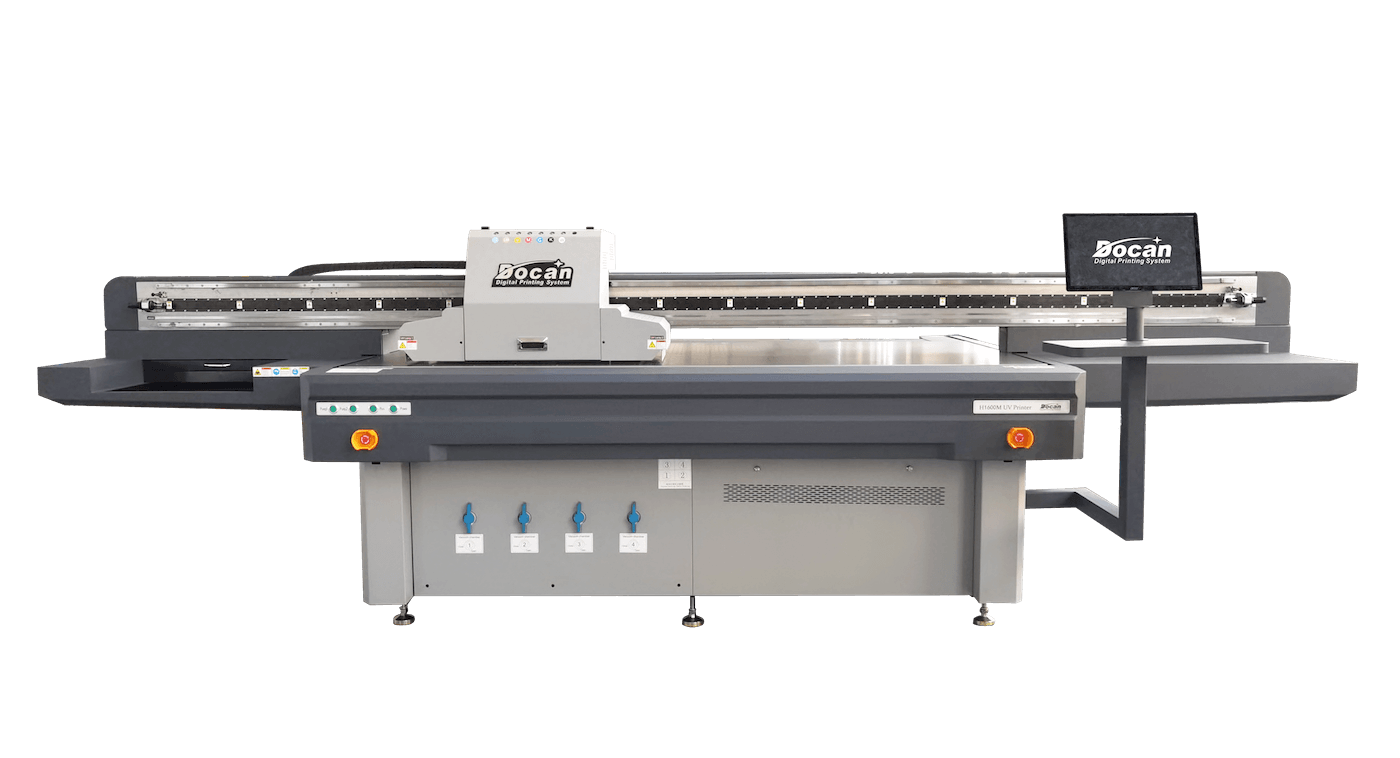

Docan UV H1600M Flatbed UV Digital Printing Machine Kyocera, Ricoh
Docan

Docan UV H1600MFlatbed UV Digital Printing Machine Kyocera, Ricoh

High quality digital printing solutions with Docan H1600M Kyocera and Ricoh head flatbed UV printer

Printing Technology
Drop-on-demand Micro Piezo Inkjet Technology
Print Head
Kyocera 3.5 Pl. / Ricoh Gen5
Max. Media Width
2600X1300
High Speed ​​Mode 4 Heads
120 m2/hour / 40 m2/hour

General Information

DOCAN H1600M -Kyocera, Ricoh Printheads

Faltbed Print Size 250x122 Provides the opportunity to print on all kinds of hard and soft surfaces, Glass, Acrylic, Chipboard, MDF, PVC Foam, Aluminum, Ceramic, Flexible Materials Vinyl, Mesh, Foil.

It offers the opportunity to print on all kinds of background colors with the White color option and provides local Bayz and Varnish opportunity with spot channel application.

Our Printing Colors with Kyocera KJ4A Printheads Lc Lm Y M C K + White
Our Printing Colors with Ricoh GEN5 Printheads Lc Lm Y M C K + White + Varnish


  • LED Lamp Option / Water Cooled
  • 250x120 cm. Printing Possibility
  • 10 cm. Height Printing Possibility
  • Media Imaging Pins
  • White Color and Varnish Option
  • ONYX RIP Software Optional
  • Antistatic Preventive Ion Bars

Technical Details

Docan Uv H1600M Model

KYOCERA KJ4A 3.5 PL / RICOH GEN5 7 PL

Docan UV H1600M Flatbed Features
Printing Technology Drop-on-demand Micro Piezo Inkjet Technology
Print Head Kyocera 3.5 Pl.    /  Ricoh Gen5
Number of Nozzles 2558 Nozzle       / 1280 Nozzle
Drop Size (pl) 3.5 Pl                  /    7 pl.
Head Height Min: 2.0 mm        / Max:10 cm.
Media Features
Max. Media Width 2600X1300
Max. Print Width 2500X1200
Max. Media Height 10 cm (can be increased by 30 cm *Optional)
* : For print quality, the height of the head from the media should be 2-3 mm.
 Possibility of Printing on All Kinds of Rigid and Flexible Surfaces
Printing Speeds
High Speed ​​Mode 4 Heads 120 m2/hour     /  40 m2/hour
Production Mode 4 Heads  80 m2/hour     /  25 m2/hour
Quality Mode 4 Heads  50 m2/hour     /  14 m2/hour
* : Printing speed may vary depending on the DPI option.
Electrical Requirement
During Printing < 360 W
Stand-by ≤ 0.5 W / ≤ 60 W
Power / Frequency AC 100-240 V ± 10 % - 60 or 50 Hz
Working Environment
Temperature 20°C - 30 °C
Humidity 40% - 60 % (Non-condensed)
Weight and Dimensions
Width x Depth x Height 4220 x 2160 x 1520 mm
Weight 1680 kg

Product Applications
