Interest in customisation and decorative surface work is growing fast in the furniture industry. UV printing on furniture applies graphics directly onto MDF, chipboard, melamine, wood, acrylic and decorative panel surfaces, with no tooling and no foil.
The reason the method has caught on in furniture is simple: the ink cures the moment UV light touches it, so a panel leaves the machine ready for the next operation. We covered how the technology works in general in our guide to UV printing machines; this article focuses specifically on furniture surfaces.
Printing on a furniture surface step by step
In furniture work the result is decided as much by the preparation as by the machine itself. The process runs in five stages.
1. Surface preparation
Dust, oil, silicone residue and production debris on the panel surface directly ruin ink adhesion. Silicone is the treacherous one: invisible to the eye, it produces the craters known as fish-eyes in the print. The surface must be clean, dry and as flat as possible before printing.
2. The primer decision
Not every surface needs primer. Porous surfaces such as raw MDF and uncoated wood hold ink directly. On closed, high-gloss surfaces such as laminated MDF, melamine, PVC and acrylic, a thin primer layer improves adhesion markedly. The decision should always be made with a scratch and tape test on the actual material; two panels sold under the same name can carry different surface coatings.
3. Placing the panel on the bed
The prepared door or panel is placed on the bed of the flatbed machine. The vacuum bed holds it in position; on large-format work this prevents the shifting that causes ghosting. Head height is set according to panel thickness, with the gap between head and surface usually kept at 2-3 millimetres.
4. Print file and ink configuration
The design is sent to the machine through the RIP software. In furniture printing, white and varnish channels can be used alongside CMYK. Where the white layer will print and which areas receive varnish are decided at this stage.
5. Printing and instant curing
During printing, UV LED lamps cure the ink the instant it meets the surface. Because there is no drying wait, the panel can be handled as soon as it leaves the line, which is the single biggest advantage in furniture production: it removes the need for intermediate stock.
Which furniture materials can be printed
MDF and laminated MDF
MDF is the material UV printing is applied to most often in furniture. Wood and marble patterns, concrete effects, geometric and floral designs, photographs or brand graphics can be printed straight onto the panel. On coated surfaces such as laminated MDF and chipboard the type of coating is decisive, and an adhesion test is mandatory.
Natural wood
On natural wood, printing gives its best result when the design works with the grain rather than against it. Letting the grain show through the print creates a depth in bespoke furniture that mass production cannot reproduce.
Acrylic
Acrylic panels and decorative components can be printed. On clear acrylic, printing in reverse and backing it with white ink makes the image appear embedded in the material while leaving the front face protected against scratching.
PVC and decorative panels
PVC and composite decorative panels can also be used. This group includes low surface energy materials, so it is where primer is needed most often; the pre-print test should not be skipped.
Why white ink and varnish make the difference
When CMYK is printed directly onto a black or dark panel, the colours are affected by the base and turn dull. The white layer printed beneath the colours cuts that effect; it is the only way to get vivid colour on a dark surface. Because white ink pigment is heavy, a machine with a white circulation system avoids nozzle clogging after long idle periods.
The varnish channel, by contrast, creates a tactile rather than a visual difference in furniture. The whole panel can stay matt while gloss varnish is applied only to selected areas, producing gloss-matt contrast, selective sheen and a light embossed feel. In luxury kitchen doors and bespoke decorative panels this effect is what separates the product from a standard print.
Applications in furniture
- Kitchen cabinet doors: marble looks, wood patterns or personalised graphics.
- Wardrobe and cupboard doors: high-resolution photographs and decorative graphics.
- Table and coffee table surfaces: brand logos, custom patterns, selective varnish.
- Decorative wall panels: single-piece designs on large MDF and composite panels.
- Furniture branding: manufacturers applying their own logo directly to the product surface.
For other rigid-surface applications alongside furniture, see our furniture sector page.
Choosing a UV machine for furniture
Machine selection for furniture production diverges from general UV printing criteria on a few points. Four headings are decisive.
Bed size and vacuum strength
The bed must not be smaller than the largest panel you will print. A medium bed is enough for a standard kitchen door, while full-height wardrobe doors and decorative wall panels call for wide-format flatbed UV printing machines. Zoned vacuum control prevents suction loss when printing a small part on a large bed.
Head height and panel thickness
Furniture panels are thicker than paper. The maximum media thickness the machine accepts and the adjustment range of its head height directly determine the range of products you can print.
White ink system
If you will print dark panels, a white channel is essential. Circulation and automatic maintenance features determine how many cleaning cycles the machine needs to return to production after standing overnight.
Varnish support
If you are aiming at decorative effects, the varnish channel is not something that can be added later; it has to be decided at the point of purchase.
Popular UV Printing Machine Models
| Fotoğraf | Ürün Kodu | Ürün Adı | Detaylı Bilgi |
|---|---|---|---|
|

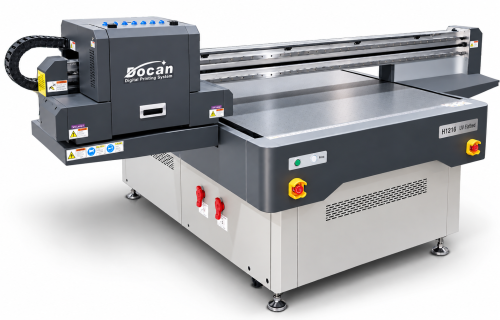

Docan H1216 | Flatbed UV Digital Printing Machine Ricoh Gen6 / Epson i3200-U1 | Review |
|

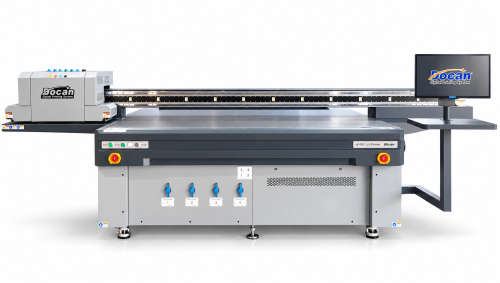

Docan UV H1000 | Flatbed UV Digital Printing Machine Kyocera, Ricoh | Review |
|
Docan UV H1600M | Flatbed UV Digital Printing Machine Kyocera, Ricoh | Review |
|
Docan UV H3000 | Large Size Digital UV Printing Machine | Review |
|
Docan UV H3220 | Industrial UV Flatbed Printer | Review |
|
Docan UV H2525 | Flatbed UV Digital Printing Machine | Review |
|
UVIP 6090 | Flatbed UV Printing Machine 6090 | Review |
Frequently Asked Questions About UV Printing on Furniture
1. Does UV print on MDF withstand washing and scratching?
Once cured, UV ink forms a hard layer that withstands everyday use. For worktop and floor applications with heavy mechanical contact, a protective varnish or lacquer layer is recommended. On vertical surfaces such as kitchen doors, extra protection is usually unnecessary.
2. Is primer required on every furniture surface?
No. Porous surfaces such as raw MDF and uncoated wood hold ink directly. On melamine, laminated MDF, PVC and glossy closed surfaces, primer improves adhesion markedly. The decision should be made by testing the actual material from each batch.
3. How thick a panel can be printed?
The limit is set by the machine's head height. Common flatbed models accept media up to 10 centimetres, and on some machines that figure is raised with an optional lift. For print quality the gap between head and surface should be kept at 2-3 millimetres.
4. Is there a drying time after printing?
There is none. UV ink cures the moment it passes under the lamp, so the panel can be handled as it leaves the machine. The drying wait of solvent-based methods, and the intermediate stock it requires, disappears.
5. Does printing a different design on each panel increase cost?
Digital printing has no tooling cost, so a different design on every panel adds nothing. On an order of a hundred pieces, printing a hundred different images takes the same production time as printing one image a hundred times. This is exactly what makes personalised furniture production possible.
